Starting at $7,498.00

Features

  • 7 inch LCD display, 800 x 480 resolution
  • More than 13 hrs of battery life
  • Pulser (EN12668 specifications):
    • Spike model;
      • 120 to 300V
      • 30 to 100 ns
    • SQ model;
      • 120 to 300V, steps of 10V
      • 30 to 500 ns, steps of 10 ns
  • 50 to 1000 ohms damping
  • Color Leg Indicator in “live” A-Scan for Angle Beam Inspections
  • Intuitive 6 key keyboard
  • IP66 rated
  • Data can be stored on removable SD-card or USB memory stick

For a lighter, more portable unit, see the USM Go Flaw Detector.

What's in the Box

  • Lithium Ion Rechargeable Battery Pack
  • Lithium Ion Battery Charger /AC Power Supply
  • SD Card (2 GB)
  • USB Download Cable
  • Transport Case
  • Quick Reference Operating Card
  • Operating Manual on CD
  • Certificate Of Conformity

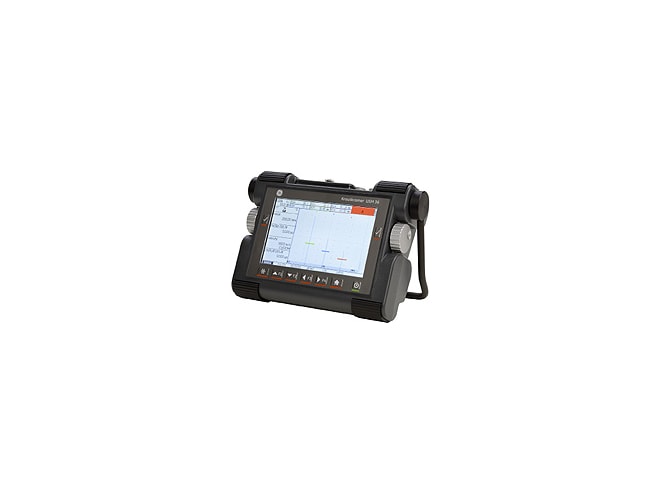

Waygate Technologies USM 36 Ultrasonic Flaw Detector combines ergonomic and robust design and the biggest display screen of its class with state-of-the-art UT performance. It incorporates a range of innovative features to ensure that this new instrument is adopted as the everyday workhorse of flaw detectors by NDT inspectors globally.

The Krautkramer USM 36 features a 7 inch LCD display with a of 800x480 pixel resolution. Signals can be easily viewed and accurately interpreted. The Krautkramer USM 36 uses the familiar rotary knobs of previous models but the function keys have now been minimized into a simple, intuitive 6-key keyboard, allowing simple and efficient operation.

Applications for the Krautkramer USM 36 include:

  • Weld inspections in the power generation and petrochemical industries
  • Precise thickness measurement in the automotive industry
  • Corrosion measurement in the power generation
  • Inspection of forging
  • Inspection of special materials

The DAC instrument package adds the following to the standard package: DAC, square wave pulser, and AWS D 1.1 calibration tool.

The S instrument package adds the following to the DAC package: DGS, Phantom echo, backwall echo attenuation, a third gate ('C'), and a data logger.

When you select lemo connectors and the DAC instrument package (part number 0037460), you have the opportunity to select from three transducer and cable kit packages:

ASME Weld

  • MWB 45° angle beam transducer, 4MHz frequency, 8x9mm element (0056927)
  • MWB 60° angle beam transducer, 4MHz frequency, 8x9mm element (0056928)
  • MWB 70° angle beam transducer, 4MHz frequency, 8x9mm element (0056929)
  • MSEB dual element straight beam transducer, 4MHz, 3.5x10mm element (0057462)
  • Lemo 00 to Lemo 1 probe cable (0050486)
  • Lemo #00 to Dual Lemo 1 (0053887)

AWS Weld

  • AWS Gamma angle beam transducer, 2.25MHz frequency, 16x19mm element (113-292-601)
  • AWS 45° wedge, 63x63mm element (118-340-104)
  • AWS 60° wedge, 16x16mm element (118-340-105)
  • AWS 70° wedge, 16x16mm element (118-340-106)
  • BNC to Lemo 1 cable (118-140-018)

General Purpose

  • MB S straight beam transducer, 4MHz frequency, 10mm element (0057749)
  • Lemo 00 to Lemo 1 probe cable (0050486)

Waygate Technologies is formerly know as GE Inspection Technologies (GEIT)

Probes

Calibration

Cables

Holsters/Straps/Harnesses

Batteries/Chargers

Accessories

Please consider these optional accessories.

This product can be used in the following applications:

Part Number Price Available
100N3826
$7,843.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
