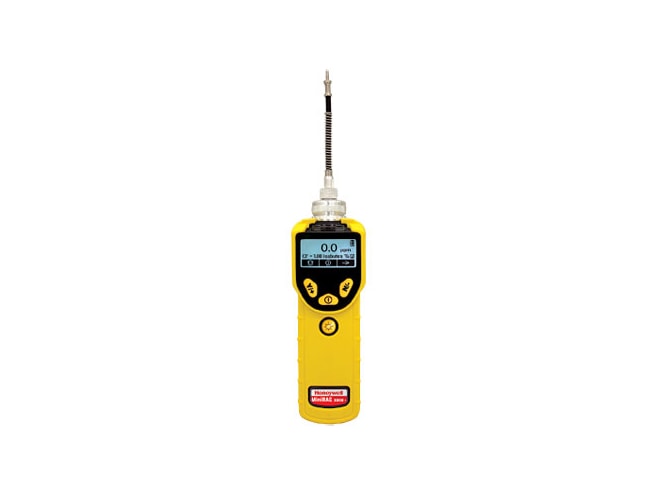

RAE Systems MiniRAE 3000 VOC Monitor

Advanced, handheld volatile organic compound (VOC) monitor with a range to 15,000 ppm.

Starting at $5,445.00
Due to restrictions on hazardous shipping, a $51 hazardous materials fee will be added to your shipping costs & shipping may take longer.

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Accurate VOC monitoring with 3 second response time
  • Up to 15 ft (5m) for BLE wireless range
  • 6 months of data logging at 1 minute intervals
  • Integrated sample pump with 500 cc/min flow rate
    • Draws up to 100ft (30m) horizontally or vertically
  • Bright red flashing visible and 95 dB audible alarms
  • Multi-language support with 12 languages encoded
  • IP67 housing for easy cleaning & decontamination
  • CSA, Classified as Intrinsically Safe
    • Class I, Division 1 Groups A, B, C, D
  • ATEX II 2G EEx ia IIC T4
  • 3-year lamp warranty

What's in the Box

  • UV lamp
  • Travel download charger
  • Flex-I-Probe
  • External filter
  • Yellow rubber boot
  • Alkaline battery adapter
  • Lamp cleaning & Tool kit
  • Li-Ion Battery
  • AC/DC adapter
  • Soft leather carrying case
  • Manual

The RAE Systems MiniRAE 3000 is the most advanced handheld volatile organic compound (VOC) monitor on the market. Its photoionization detector's (PID) extended range of 0 to 15,000 ppm makes it an ideal instrument for applications from industrial hygiene to leak detection and HazMat.

The MiniRAE 3000 provides accurate measurements with the fastest response time, 3 seconds, in its class. A strong, built-in sample pump draws up to 100' (30m) horizontally or vertically. Designed for fieldwork, the MiniRAE 3000 has a rugged, IP67 rated housing for easy cleaning and decontamination in water and provides easy access to the lamp and sensor in seconds without tools. An integrated flashlight allows better visibility in low light. The RAE Systems MiniRAE 3000 VOC monitor includes multi- language support with 12 languages encoded. The big graphic display allows easy overview of concentration levels.

Kit Options

Monitor with Accessories Kit adds: Hard transport case with pre-cut foam, Charging/download cradle (instead of travel charger,)5 Porous metal filters and O-rings, Organic vapor zeroing kit, Gas outlet port adapter and tubing.

Optional Calibration Kit adds: 100 ppm isobutylene calibration gas (34L), Calibration regulator & flow controller
