Features

  • High temp measurement up to 2192°F (1200°C)
  • 76,800 pixels (320 x 240)
  • Accuracy: ±2°C or 2%
  • High resolution 640x480 capacitive touch screen
  • 24° x 17° field of view
  • Streaming video (USB and HDMI)
  • Detect and communicate issues faster
  • 60Hz image capture frequency
  • LaserSharp auto focus
  • Built-in laser distance meter
  • Records thermal video with audio (.avi)
Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

What's in the Box

  • Standard infrared lens
  • AC power supply and battery charger
  • Two lithium-ion smart battery packs
  • USB cable
  • HDMI video cable
  • SmartView software available via free download
  • Rugged, hard carrying case
  • Soft transport bag
  • Adjustable hand strap
  • Warranty registration card

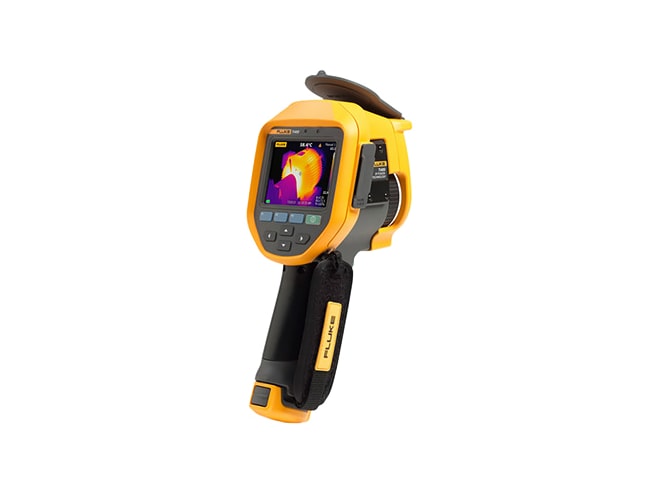

The Fluke Ti400 Infrared Camera is powerful high performance camera that makes troubleshooting fast and easy. The Ti400 is handheld and is provided with an easy-to-use interface. The temperature measurement range of -4 to 2192°F (-20 to 1200°C) has accuracy of ±2°C or 2% (at 25°C nominal, whichever is greater).

The Fluke Ti400 Infrared Camera is equipped with LaserSharp AutoFocus for perfectly focused images. LaserSharp auto focus tells you exactly where you are focusing. It uses a laser to calculate the distance to your target before it focuses. Place the red laser dot on the object you are inspecting, then pull and release the trigger for a perfect in-focus image. The Ti400 has an on-screen emissivity correction, on-screen reflected background temperature compensation and on-screen transmission. The image capture frequency comes at 60Hz.

The Ti400 Detects and communicates issues faster with patented Fluke IR-Fusion technology with AutoBlend mode. Faster communication is capable with wireless image transfer directly to your PC, Apple iPhone or iPad. The Ti400 features a Ruggedized high resolution 640x480 capacitive touch screen for quick menu navigation. Capture additional digital images to show location or additional site details with IR-PhotoNotes Annotation System. Optional interchangeable lenses for greater flexibility in additional applications.
