Starting at $4,439.00
  • Usually ships in 1-2 weeks

Features

  • Generate 3,000 psi (200 bar) in 40 seconds
  • 0.001 psi (10 Pa, 0.1 mbar) adjustment resolution
  • Specially designed shut-off valve
  • Durable and minimal maintenance
  • Hand-tight quick connectors
  • Material:
    • Ram/adapters: SST
    • Body: SST/aluminum
    • Seals: Buna-N, F357
  • Built-in gas-liquid isolator
  • High-quality screw press

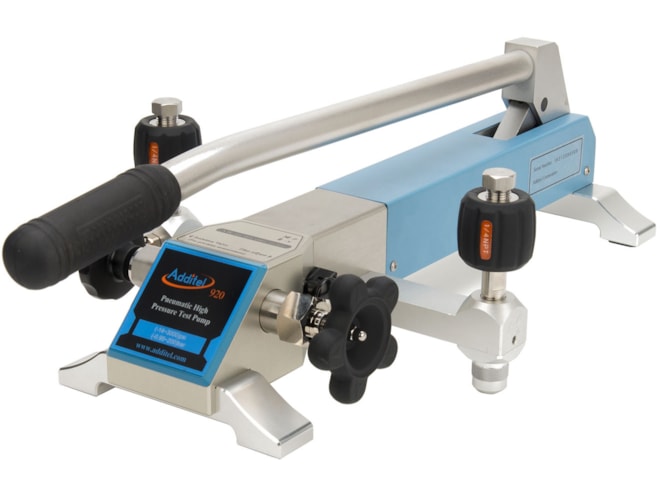

The Additel ADT 920 and 920HV high pressure test pumps are hand-operated pressure pumps designed to generate pressure from 95% vacuum to 3,000psi (200bar). With a long lever, it takes only 40 seconds to reach 3,000 psi (200 bar). The high volume (HV) model has been outfitted with a higher volume pump to provide added capacity. A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 10 Pa (0.1 mbar).

A specially designed shut-off valve makes the pressure as stable as possible during calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt to reduce the need for maintenance. The residual liquid in the pump introduced from devices under test will be pushed out and collected during pressure release. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 920 and 920HV are ideal for calibrating high pressure gauges, transmitters, or other pressure measuring instruments.
