• 65-P014
  • Usually ships in 4 weeks



  • 0 to 700 bar / 0 to 10000 psi pressure range
  • 4 pressure output manifold
  • Small size and light weight
  • Rugged, and portable solution
  • Compatible with: DPC-500, HPC500, HPC502, HPC550Ex, HPC552Ex and IPI

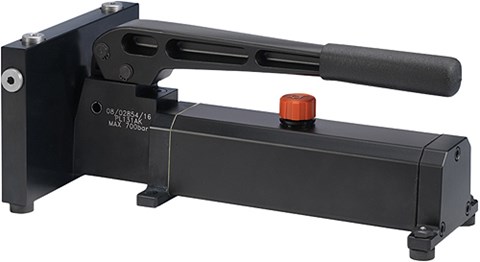

The Ametek 65-P014 Hydraulic Jack Pump is designed for high pressure oil applications. The small size and light weight make it a sensible, rugged, and portable solution. The pump has a 4 pressure output manifold similar to the JOFRA screwpump. Fine adjustment vernier valve and fittings are optional. Standard thread connections are 1/4 inch BSP and adapters are available.

Ready-to-use pressure systems for the DPC-500, APC, CPC, and IPI calibrators. For all pressure systems the pump and the indicator are separate systems. Therefore a replacement of the pump does not mean that you have to send the complete system for repair. Maintenance of the instrument is also made easy. Recalibration of the unit can be performed locally with an accurate pressure reference: No need to send the unit back to the manufacturer for recalibration. If you do require a factory calibration, the pump and indicator are independent and only the indicator needs to be returned. JOFRA pressure calibrators are as standard delivered as individual indicators or as a complete calibration systems ready to use in a carrying case, including pump, hose, set of fittings, batteries, test leads, user manual, and a NIST traceable calibration certificate.
