Features

  • 0 to 350 bar / 5.000 psi pressure range
  • Oil or water
  • Compatible with: DPC-500, HPC500, HPC502, HPC550Ex, HPC552Ex and IPI
  • Easy and controlled generation of high pressure
  • 4-output manifold

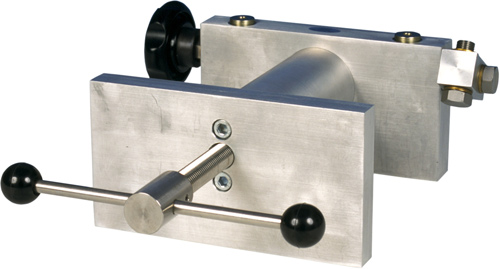

The Ametek 65-P016 / 65-P017 Hydraulic Pressure Screw Pumps are designed for easy and controlled generation of high pressure. The screw pump has a 4-output manifold. fine adjustment, vernier valve, liquid reservoir, and fittings are optional. The screw pump may be delivered for hydraulic oil or water. Standard thread connections are 1/4 inch BSP and adapters are available.

Ready-to-use pressure systems for the DPC-500, APC, CPC, and IPI calibrators. For all pressure systems the pump and the indicator are separate systems. Therefore a replacement of the pump does not mean that you have to send the complete system for repair. Maintenance of the instrument is also made easy. Recalibration of the unit can be performed locally with an accurate pressure reference: No need to send the unit back to the manufacturer for recalibration. If you do require a factory calibration, the pump and indicator are independent and only the indicator needs to be returned. JOFRA pressure calibrators are as standard delivered as individual indicators or as a complete calibration systems ready to use in a carrying case, including pump, hose, set of fittings, batteries, test leads, user manual, and a NIST traceable calibration certificate.
