Fuji Electric FRENIC-Mega Inverter
Starting at $706.00

Call for availability [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Multi-rated specification solution for ½ to 1000HP
  • Designed for constant & variable torque applications
  • Configurable Overload capability from 120% to 200%
  • Simple and easy setup feature with FREE software
  • DC link reactor furnished with units rated for ≥100HP
  • Optional keypad with USB port
  • Corrosion Protection
  • Built-in customizable logic
  • Brake control function
  • Advanced PID functions (dancer control)
  • Built in advanced functions & EN954-1 safety input
  • Industry leading MTBF with 3 year warranty

The Fuji Electric FRENIC-Mega Inverter is a high performance, multifunctional drive that combines state-of-the-art technology with unyielding standards of quality and flexibility to meet the demands of both simple and complex industrial applications. Offering expanded power ratings and flexible configurations that support 1/2 up to 1,000 hp AC drive, variable frequency drive (VFD), v/ Hz vector drive applications, these inverters are designed for long lifecycles and improved maintenance functions.

The Fuji FRENIC-Mega has been developed to use with variety of 3-phase industrial motors by improving the basic performance, meeting the requirements for various applications, achieving lower maintenance and reducing environmental impact. The FRENIC-Mega is packed with features and offers simple, intuitive start up.

Main features of Fuji Electric FRENIC-Mega Inverter:

  • Safety enable input (compliant to EN954-1 category 3)
  • Built-in EMC filter for all capacities (compliant to EN 61800-3, category C3)
  • Sensorless vector control mode (100% torque at 0 Hz)
  • Advanced PID functions (dancer control)
  • Brake control function
  • Logic gates for logic combination of input and output functions and delay timer (10 steps)
  • Positioning function (when encoder option is used)
  • 3 slots for 3 different options at the same time (encoder, fieldbus, I/O expansion)
  • Removable control terminals (cage clamp type)

The Fuji Electric FRENIC-Mega is the ideal solution for low duty, medium duty or heavy duty applications in any variable torque or constant torque applications including belt conveyors, warehouse applications, winders, press machines, centrifugal separators and extruders.

Fuji Electric FRENIC-Mega NEMA Kit
Enclosure that protects inverter to NEMA1 (UL Type 1 listed) standards
$31.00
Fuji Electric FRENIC-Mega DeviceNet Card
Connects to a DeviceNet master unit for reading & writing all FRENIC-Mega function codes, run command, and speed command
$1,000.00
Fuji Electric FRENIC-Mega CC-link Card
Connect to CC-link master to use run command, speed command, and to access inverter's function codes
$850.00
Fuji Electric FRENIC-Mega PROFIBUS-DP Card
Connects to PROFIBUS DP master node to read and write all FRENIC-Mega function codes
$980.00
Fuji Electric T-link Interface Card
Connects the FRENIC-Mega inverter to a Fuji MICREX series of programmable logic controllers (T-Link module)
$760.00
Fuji Electric CANopen Communications Card
Allows users to connect a FRENIC-Mega inverter to a CANopen master unit
$1,300.00
Fuji Electric Pulse Generator Interface Card
Pulse Generator interface and synchronization cards for FRENIC-Mega inverters
$130.00
Fuji Electric Digital Input Interface Card
Makes it possible to specify frequency commands with binary code or binary coded decimal (BCD)
$360.00
Fuji Electric Digital Output Interface Card
Enables monitoring with 8-bit binary code
$360.00
Fuji Electric Analog I/O Interface Card
Enables analog input and output to/from a FRENIC-Mega inverter
$360.00
Fuji Electric Relay Output Card
Converts transistor outputs on the FRENIC-Mega inverter to relay outputs, four 1C contacts (SPDT)
$95.00
Fuji Electric 115V I/O Card
Interface card with 8 (115VAC) inputs and 4 (N.O.) relay outputs, DIN rail mountable
$145.00
Fuji Electric Remote Multi-function Keypad
Allows users to remotely operate FRENIC-Eco, FRENIC-Mega, or FRENIC-Multi series of inverter
$185.00
Fuji Electric PB-F1-15 External Cooling Adapter
Mounting adapter that reduces heat radiated or spread inside the panel enclosure
$43.00
Fuji Electric PB-F1-30 External Cooling Adapter
Mounting adapter that reduces heat radiated or spread inside the panel enclosure
$46.00
Fuji Electric Remote Keypad Cable
Straight type extension cable with RJ-45 jacks for remote keypad operation
$40.00

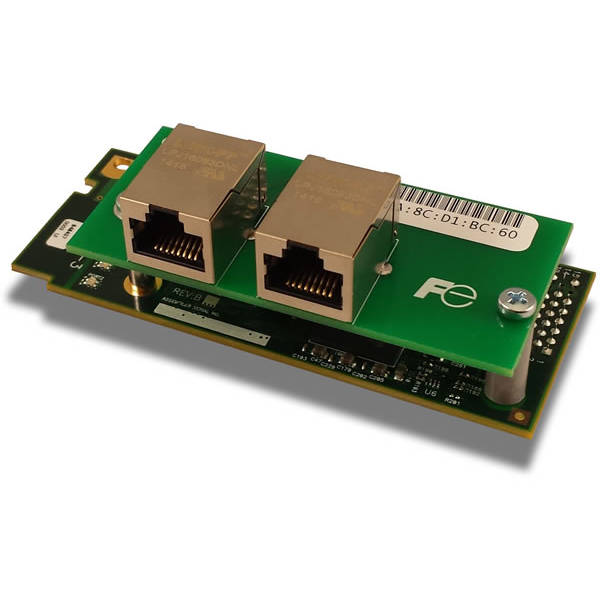

Fuji Electric OPC-ETH Ethernet Card
Ethernet communications interface card for the Fuji Electric FRENIC-Mega inverter
$425.00
