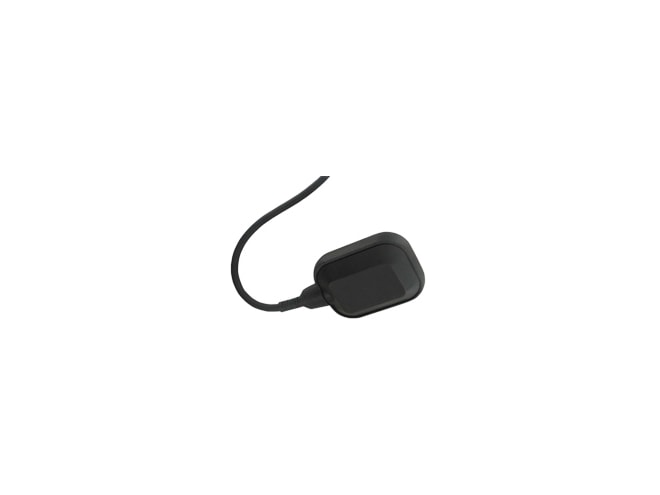

Flowline LV41 Switch Tek Float Level Switch

Name: Flowline LV41 Switch Tek Float Level Switch
Price: 114.0 USD
Availability: BackOrder

Mechanically actuated float switch intended for automatic start / stop of electrical components, submersible polypropylene body.

Starting at $114.00

View Company Reviews

Manufactured

By Flowline

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Manual Product Specs

Features

Model LV41 Switch Tek Float Level Switch
Process temp: 32 to 122°F (0 to 50°C)
Pressure: 14.5 psi (1 bar)
Service: Compatible liquids
Orientation: Vertical
Compatible with counter weights and cable hangers
Ideal for simple liquid level control
Contact type: SPDT (NO/NC)
Contact rating: 10 (8) A @ 250 VAC
Sensor rating: NEMA 6 (IP68)
Sensor material: Polypropylene
Cable jacket material: PVC

The Flowline LV41 Switch Tek Float Level Switch the provides reliable liquid level detection and is perfect for simple liquid level control for filling or draining reservoirs and tanks. LV41 float switches are universally used for pump automation due to reliability, inexpensiveness and ease of installation.

Additional feature / benefits of the Flowline LV41 Switch Tek Float Level Switch includes:

Mechanically actuated float switch intended for automatic start / stop of electrical components
Submersible polypropylene body and PVC cable for corrosive liquids
10 (8) A @ 250 VAC dry contact selectable NO or NC state via wiring selection
Compatible with counter weights and cable hangers for simple installation
