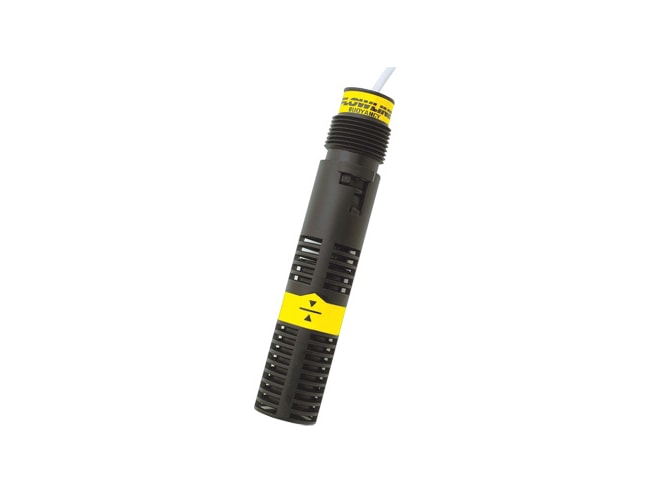

Flowline LV10 Switch Tek Vertical Buoyancy Level Switch
Starting at $120.00

Not in stock. Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Model LV10 Switch Tek Vertical Buoyancy Level Switch
  • Accuracy: ±2mm in water
  • Baffle body and stabilized float dampen out switch chatter
  • Contact type: (1) SPDT reed
  • Pressure:
    • 25 psi (2 bar) @ 25ºC
    • derated @ 1.667 psi (0.113 bar) per °C above 25°C
  • Process temp: -40 to 194°F (-40 to 90°C)
  • Orientation: ± 20° vertical
  • Specific gravity: 0.8 minimum
  • Submersible polypropylene or PVDF sensor
  • Contact rating: 15 VA, 0.25A maximum
  • Sensor rating: NEMA6 (IP68)
  • Process mount: 3/4” NPT (3/4” Rp)
  • Sensor material:
    • 13X1: Polypropylene
    • 53X1: PVDF
  • Contact output: selectable NO / NC
  • Repeatability: ±1mm in water
  • Cable jacket material:
    • 13X1; Polypropylene
    • 53X1; PFA
  • Cable type: 3-conductor, shielded, 10' (3m)

The Flowline LV10 Switch Tek Vertical Buoyancy Level Switch provides reliable liquid level detection of relatively clean water and chemical solutions with a 15VA reed switch output. Media examples include boric acid and ultrapure water. The baffle body eliminates level switch chatter caused by turbulence. The submersible polypropylene or PVDF liquid level sensor is mounted vertically inside the tank as a high level alarm or low level alarm.

Additional features and benefits of the Flowline LV10 Switch Tek Vertical Buoyancy Level Switch include:

  • Baffle body and stabilized float dampen out switch chatter
  • Submersible polypropylene or PVDF sensor and cable for corrosive liquids
  • 15VA dry contact selectable NO or NC state via wiring selection
  • Compatible with Smart Trak and Switch-Pak installation fittings
  • Ideal for water and waste applications
  • Float can wire directly to PLC/ SCADA or controller
  • Dynamically stabilized float minimizes the effects of relay chatter
  • Cage helps protect from debris
