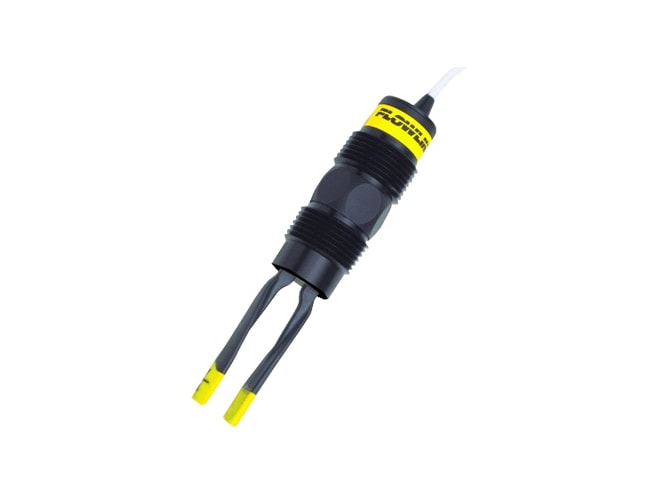

Flowline LZ12 Switch Tek Vibration Level Switch
Starting at $305.00

Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Model LZ12 Switch Tek Vibration Level Switch
  • Accuracy: ±1mm in water
  • Pressure:
    • 150 psi (10 bar) @ 25°C
    • derated @ 1.667 psi (0.113 bar) per °C above 25°C
  • Contact type: (1) SPST relay
  • Contact rating: 60 VA, 1A maximum
  • Sensor rating: NEMA 6 (IP68)
  • Process mount: 3/4” NPT (3/4” G)
  • Process temp: -40 to 176°F (-40 to 80°C)
  • Automatic coating adjustment optimizes sensor performance
  • Repeatibility: ±0.5mm in water
  • Maintenance alarm: NPN transistor, 10 mA maximum
  • Submersible Ryton® sensor w/ polypropylene cable for corrosive liquids
  • 5-conductor, shielded #24AWG cable 10' (3m)

The Flowline LZ12 Switch Tek Vibration Level Switch provides reliable liquid level detection of dirty liquids such as those with light to medium coating, scaling or foaming characteristics with a 1A relay output. Media examples include wastewater, diluted caustic soda and light weight oil. For optimum performance, the liquid level switch automatically adjusts for coating build up, and if necessary, outputs a proactive maintenance alarm to request cleaning. The submersible Ryton® liquid level sensor is universally mounted through the tank wall or inside the tank as a high level alarm or low level alarm.

Additional features and benefits of the Flowline LZ12 Switch Tek Vibration Level Switch include:

  • Automatic coating adjustment optimizes sensor performance
  • Submersible Ryton® sensor with polypropylene cable for corrosive liquids
  • Coating alarm proactively alerts user when cleaning is required
  • 60VA relay selectable NO or NC via power supply wiring polarity
  • Compatible with Smart Trak and Switch-Pak installation fittings
  • Ideal for coating/scaling liquids
  • Mounts through side wall or top wall of tank
  • Sensor has a coating alarm indicating to clean
  • Great as a redundant high alarm
