AEMC MiniFlex High Frequency Oscilloscope Compatible Probes
Starting at $569.00

Usually ships in 3-5 business days [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Measures from 0.5 to 300Arms
  • Accuracy 1% of Reading ± 0.2A
  • TRMS measurements when connected to a TRMS instrument
  • No core saturation or damage if overloaded
  • 9V battery for typical 140 hours continuous operation
  • 1MHz frequency response
  • Low phase shift for power measurements
  • Insensitive to DC, measures only AC component on DC + AC signals
  • Excellent linearity
  • Lightweight
  • Sensor is resistant to oils and aliphatic hydrocarbons
  • Perfect accessory for all oscilloscopes

This product is an accessory for the following products:

AEMC Model MTX 162 PC Oscilloscopes
2-channel, 60MHz, oscilloscope with FFT and recorder
$1,040.00
$988.00
AEMC Model OX7102 III / OX7104 III Oscilloscopes
100 MHz oscilloscope, FFT analyzer, multimeter/wattmeter, harmonic analyzer on voltage/current/power and recorder
$4,595.00
$4,365.25
AEMC MTX 1052B / MTX 1054B PC Oscilloscopes
2 & 4 channel, 150MHz, with FFT harmonic analyzer and recorder
$1,395.00
$1,325.25
AEMC OX 7202III & OX 7204III Oscilloscopes
Hand-held, two-channel oscilloscope with 200MHz bandwidth
$5,395.00
$5,125.25

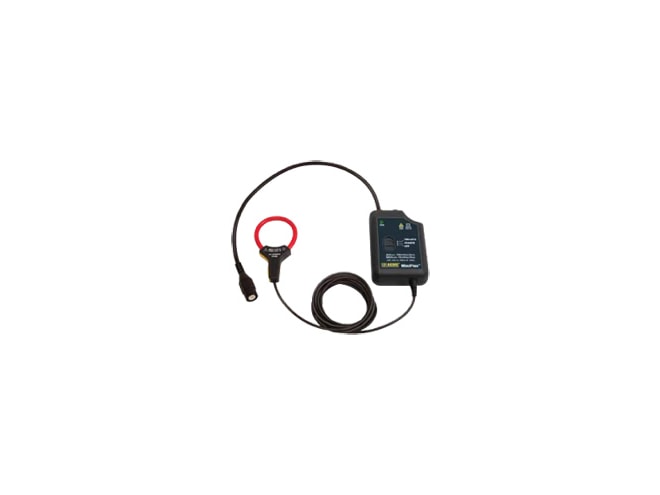

The AEMC MiniFlex High Frequency Oscilloscope Compatible Probes are compact flexible AC current measurement devices composed of a flexible sensor and an electronic module. It is designed to measure AC Current from 5Hz to 1MHz. The flexible sensor permits measurements on conductors where standard clamp-on probes could not be used. In particular, it can be installed in confined spaces, places where access is difficult, or even wrapped around irregular shapes. The flexible sensor is available in lengths of 6" and 10".
