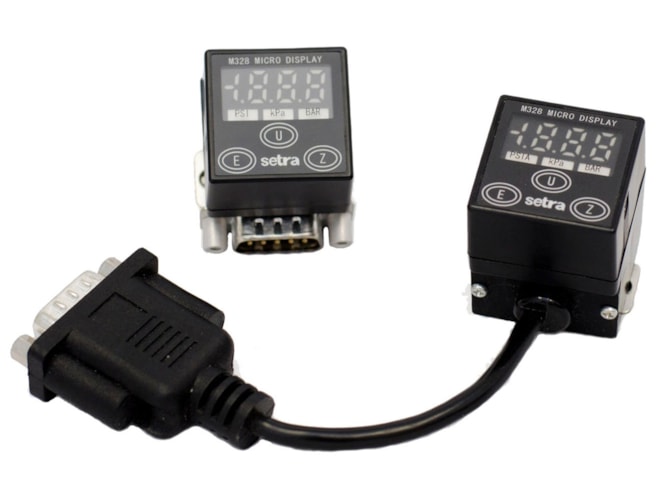

Setra 328 Micro Display
Starting at $382.00

Not in stock. Usually ships in 4 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Rotating face for 360° Viewing
  • Switchable Engineering units
  • 0.1% of Reading, ±1 Count accuracy
  • Recessed mating connector to reduce potential Interference
  • CE and RoHS compliant
  • Operating temp: 32 to 140°F (0 to 60°C)
  • -1999 to 1999 digit display
  • 7 segment red LED

The Setra 328 Micro Display is designed for use in high density modular block gas sticks and panels required for today's 300mm tools. With a footprint of 1-1/8'', the Model 328 is ideal for in-line installation between the power supply and the pressure transducer.

The 328 is a low-power consumption device , which is calibrated to convert the transducer's 0-5 VDC, 0 to 10 VDC, or 4-20 mA output to a viewable 3-1/2'' digit LED display.

A choice of electrical connector combinations are available. They include 9 pin D-Sub or high-density 15 pin D-Sub connectors for electrical connection to the transducer and the power supply.

The front face of the 328 rotates 360˚ degrees for viewing in any of four orientations. Detents ensure proper positioning at each orientation. Front access to the push-button zero and span and up to three factory configured pressure units complete this unique design.

When coupled with Setra's Model 227, 1-1/8" down-mount pressure transducer, this package provides the ultimate in pressure measurement and display. The 328 may also be used with a variety of other Setra Ultra-High Purity products as well, including Models 217, 223 and 224.

Applications include:

  • Modular 1 1/8" block gas sticks and panels
  • High purity gas delivery systems
  • Semiconductor process tools
