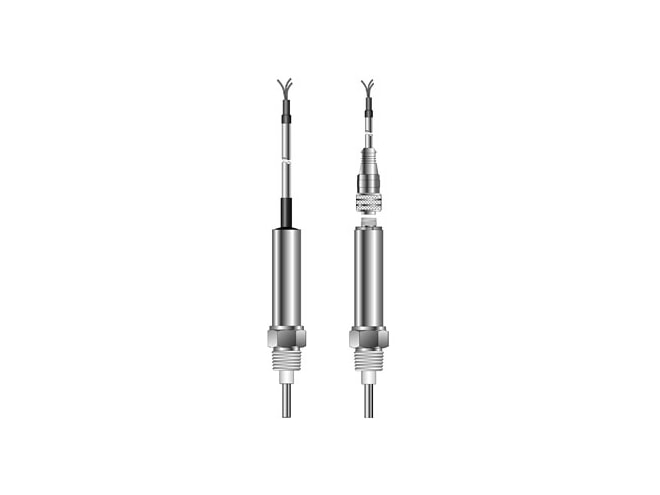

Intempco LLS100 Conductivity Level Switch

Liquid level limit detection in metallic and non-metallic tanks containing electrically conductive liquids.

Starting at $281.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Manual Product Specs

Features

  • All stainless steel 316 construction, Tefon isolator
  • Integral electronic switching, relay output
  • Built-in slosh dampening
  • Hermetically sealed, vibration resistant construction
  • No moving parts
  • For conductive liquids
  • Minimum or maximum limit detection
  • 100 psi (6.9 bar) max pressure
  • 212°F (100°C) max temp
  • Supply voltage: 12-30 VDC
  • Output: SPDT relay, 1A; N.O. or N.C.
  • Fitting size: 1/8" to 1/2" NPT

The Intempco LLS100 Conductivity Level Switch can be used in harsh environments, for liquid level limit detection in metallic and non-metallic tanks containing electrically conductive liquids. The probe, fitting and housing are constructed of stainless steel 316; the isolator is Teflon. The LLS100 sensor features built-in protection against reverse polarity, overvoltage and electrical shielding to deliver long-term reliability. The output is relay SPDT which can be configured as either NO or NC (4-wire) or both NO and NC (5-wire).

Applications include:

  • Limit detection of conductive liquids
  • Water level monitoring in oil separators
  • Steam boilers
  • Waste water level monitoring
  • Leak detection
  • Coolant level monitoring
