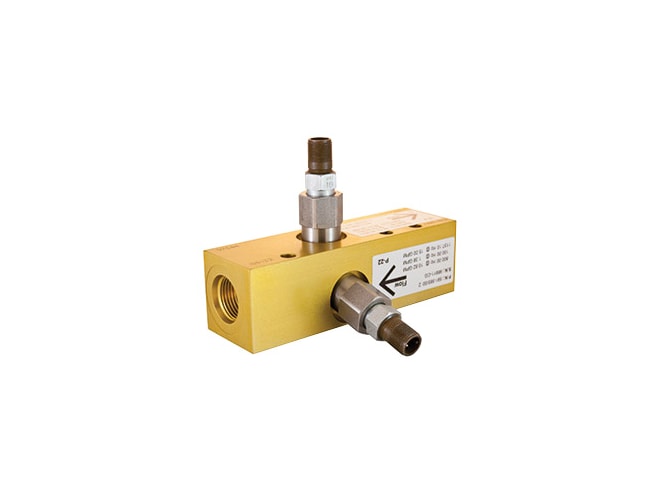

Flo-tech Quad Series Turbine Flow Sensor
High strength aluminum body, provides bi-directional flow rate measurement with four flow ranges.
Overview
Features
- Repeatability ±0.2%
- Pressures up to 5000 psi (345 bar)
- Temperatures up to 300°F (150°C)
- ±1% of FS flow accuracy for forward & reverse flow
Description
The Flo-tech quad series turbine flow sensors are derived from the FSC series, utilizing two flow transducers which are 90° electrically out of phase from each other. With the addition of a second flow transducer, it is possible to monitor flow in both directions. The F2000 quad is suitable for up-down counters that can discern the leading and trailing edges of the quadrature signals.
The F2000 can be used as a speed-sensing device on mobile equipment in current applications. This bi-directional flow sensor can be used as a governor, sending frequency signals back to a PLC, which enables it to make the necessary adjustments. Other functions of the flow sensor are in linear applications where accurate positioning is required.
Documents
Accessories
Required Components
These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
Calibration
Applications
This product can be used in the following applications:
