Starting at $499.00
Starting at $474.05

Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 6 to 100,000 rpm
  • 1 to 50 cm optical sensor distance
  • Digital display with analog bargraph
  • 4000 measurements results
  • Includes TachoGraph software on CD-Rom (CA1727 only)
  • USB interface for processing results on a PC (CA1727 only)
  • IP51 weatherproofing
  • 32 to 131°F (0 to 55°C) operating temp

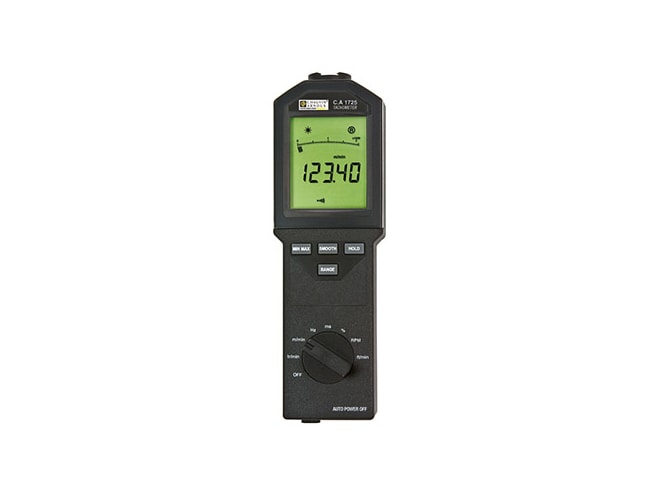

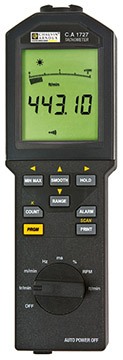

The AEMC CA1725 / CA1727 tachometers can measure the rotation speed of any moving part or device. A photo reflective strip facilitates distance measurements. The optical sensor avoids external interference by incorporating an active, modulated infrared beam ensuring measurement accuracy.°

The CA1725 and CA1727 models both include an adapter for traditional contact type measurement. Additionally, these instruments can measure from sensors with voltage outputs through an external input. These tachometers feature extensive programming possibilities with multiple functions and automatic routines for data acquisition and storage including the measurement of rotational speed, linear speed, count, frequency and period functions.

The Model CA1727 includes a USB connection and software specific to tachometers, which facilitates recording and data analysis. The LCD display includes both a digital readout and a 42-segment bar graph. Other functions include Min, Max, Hold and Alarms.

Applications for the AEMC CA1725 Infrared Tachometer

  • Linear velocity measurement on conveyor belts
  • Piece counting
  • Test rigs
  • Speed control and measurement

AEMC CA1725 & CA1727 Tachometers Include

  • Hard case
  • FRB F connector
  • 9V battery
  • 15 reflective strips
  • User manual & quick start guide
  • USB cable (CA1727 only)
  • TachoGraph software on CD-Rom (CA1727 only)
AEMC 1749.02 Mechanical Accessory Kit
For Models CA1725 & CA1727
$112.00
