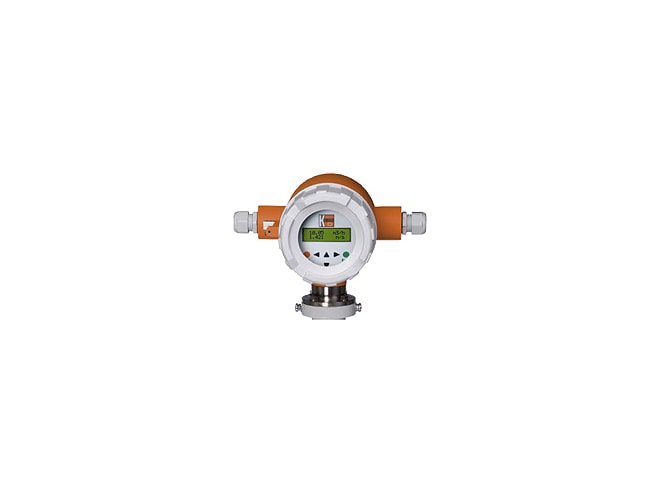

Kobold DMH Series Inductive Flow Meter

Rough ambient conditions, measures flow rate of electrically conductive materials.

Retired products cannot be ordered

The Kobold EPS Magmeter is the recommended replacement

View Company Reviews

Manufactured

By Kobold

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Can be used in rough ambient conditions
Accuracy ±0.3% of reading
Lining: hard rubber, soft rubber, PTFE, Wagunit
Pressure max: PN40
HART® communication
IP67 protection
Stainless steel, hastelloy, tantalum or platinum electrodes
Variety of process connections and linings

The KOBOLD DMH Inductive Flow Meter is used to measure and monitor the volume ﬂow rate of ﬂuids, pulps, pastes and other electrically conductive materials, without loss of pressure.

When an electrically conductive medium passes through a directional magnetic ﬁeld, a voltage is induced in accordance with Faraday's Law of Induction. The size of this measurement voltage is proportional to the mean rate of ﬂow and consequently also to the volume ﬂow rate.

A ﬂowmeter consists of a sensor that picks up the measuring signal generated from the induced voltage, and a transducer that converts this signal into a standardised output signal (4-20 mA or pulses). The measurement transducer can be afﬁxed to the sensor or mounted separately.

Pressure, temperature, density and viscosity do not affect the volume measurement. Solid fractions and gas bubbles should be avoided.

Applications include:
