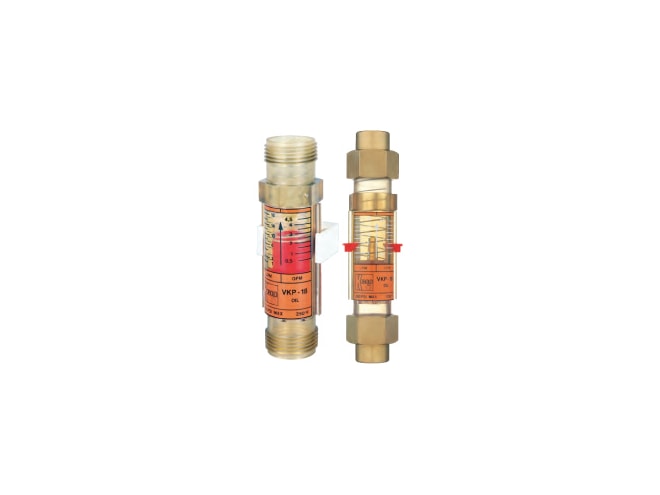

Kobold VKP Series Flow Meters
Viscosity-compensated plastic flow meters and switches, reduced float jamming
Need Help? Call a Flow Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
Lou P.
Senior Applications Engineer
22 years at Instrumart
Matt W.
Flow Engineering Lead
15 years at Instrumart
Mathias H.
Applications Engineer
9 years at Instrumart
Jason D.
Senior Applications Engineer
16 years at Instrumart
Colin W.
Applications Engineer
8 years at Instrumart
Features
- ±8% full scale accuracy
- ±1% full scale repeatability
- NPT fittings
- Polysulfone construction
- Compact size
- Direct reading scale for oil and water
- 250°F: Max. Temperature
- 230 PSI: Max. Pressure
The Kobold VKP Series Flow Meters and switches are used wherever inexpensive flow measurement of liquids (eg. domestic services, cooling water, lubrication systems, solar heating, etc.) is to be performed. The VKP series offers a compact design with wetted parts of Polysulfone, PVDF and Stainless Steel. Its low cost and features make the VKP series an ideal choice for OEM applications. Flow is read at the upper edge of the float.
Applications include:
- Lubrication circuits
- Domestic electrical installations
- Machine tools
- Solar energy systems
- Cooling circuits
- Welding machines
- Pumps
