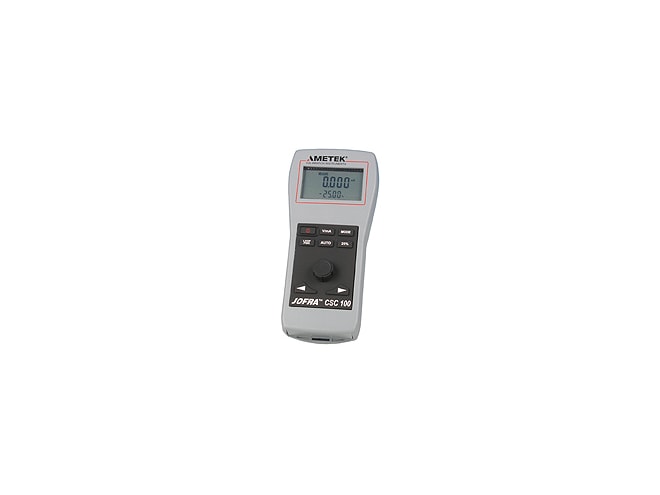

Ametek CSC Series Signal Calibrators

Fuse-less protection, Accuracy up to ±0.015% of reading ±2 units.

Ametek CSC Series Signal Calibrators
Ametek CSC Series Signal Calibrators
  • Ametek CSC Series Signal Calibrators
    Ametek CSC Series Signal Calibrators
  • Ametek CSC Series Signal Calibrators
    Ametek CSC Series Signal Calibrators
Ametek CSC Series Signal Calibrators
Ametek CSC Series Signal Calibrators
Ametek CSC Series Signal Calibrators
Ametek CSC Series Signal Calibrators
Retired products cannot be ordered
For replacement see the Ametek CSC101 Signal Calibrator

View Company Reviewsby Trustpilot
Manufactured
  • By Ametek
Includes
  • FREE Ground Shipping
  • FREE Lifetime Tech Support
Questions?
Call 1-800-884-4967 or email sales@instrumart.com. Open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Trustpilot

Overview

Features

  • CSC100:
    • Auto-stepping
    • Operating temperature: 14 to 122°F
    • Complete marine program
    • Dual line display
    • Accuracy up to ±0.015% of reading
    • HART resistor
  • CSC200:
    • Cold junction compensation
    • User defined set points
    • Accuracy up to ±0.2°C / 0.36°F
    • Jacks for 2, 3, or 4-wire RTDs
Instrumart logo
For a replacement for the CSC100 see the CSC101. Ametek CSC101 Signal Calibrator
For a replacement for the CSC200 see the CSC201. Ametek CSC201 Signal Calibrator

Description

The Ametek CSC Series Signal Calibrators are dedicated units designed to make your calibration and maintenance tasks easier to perform.

The JOFRA CSC100 is engineered for instrument loop calibrations and is specifically manufactured for 4 to 20 mA loops; however this versatile instrument offers much more than than. This calibrator can source and read current and voltage; including millivolts. It can also be used as a signal simulator to test your transmitters without the need for actual operation.

The CSC100 also offers features such as an auto-stepping function and fuse-less protection. These handy time savers are combined in a package offering an easy-to-read, two line display, and an intuitive keypad with a knob for fine adjustments. This calibrator is more than a simple tool but it is as straightforward as any device that you have in the toolbox. The CSC100 signal calibrator offers the accuracy and features needed in a convenient, compact, and easy-to-use package.

The JOFRA CSC200 is engineered for the calibration of temperature instruments offering the ability to measure and simulate several different types of RTDs and TCs. This instrument makes the job easy by ulitizing a thermocouple plug for easy connection and can work with 2, 3, or 4-wire RTDs. The CSC200 also offers features such as user-defined setpoints with a recall function, selectable cold junction compensation, and installed curves for 14 RTD and 13 TC types. These handy time savers are combined in a package offering an easy-to-read, two line display and an intuitive keypad with a knob for fine adjustments. This calibrator is more than a simple tool but it is as straightforward as any device that you have in your toolbox. The CSC200 signal calibrator offers you the accuracy and features that you need in a convenient, compact, and easy-to-use package.

Documents

Documents

  • Ametek CSC100 Signal Calibrator Datasheet PDF (1.1 MB)
  • Ametek CSC200 Signal Calibrator Datasheet PDF (1.1 MB)
  • All possible part numbers

Accessories

Batteries/Chargers

Ametek 124717 Rechargeable Batttery
Ametek 124717 Rechargeable Batttery

1x 9 Volt rechargeable battery.

$45.00

Accessories

Please consider these optional accessories.

Ametek Thermocouple plug + K wire
Ametek Thermocouple plug + K wire

Thermocouple plug + K wire + alligator.

$188.00
Ametek Thermocouple plug + T wire + alligator
Ametek Thermocouple plug + T wire + alligator

Thermocouple plug + T wire + alligator.

$121.00
Ametek Thermocouple Plug
Ametek Thermocouple Plug

Thermocouple plugs for Ametek dry block calibrators.

Starting at $18.00
Ametek Battery Charger
Ametek Battery Charger

Battery charger for Ametek rechargeable batteries.

$298.00
