Starting at $429.00

Not in stock. Usually ships in 1-3 business days [?]

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

Features

  • Programmable start/stop time and sample rates
  • Up to 64,000 data samples per recording session
  • Multiple alarm set points
  • Compact size
  • USB Interface (cable included)
  • Powerful interactive Track-It Software package included
  • Rugged IP67 316L stainless steel package
  • 5 year battery life (battery included)
  • 0 to 185F (-20 to 85C)
  • Available in 0-35, 0-150, 0-350, 0-550, 0-2000 or 0-5800 psi ranges
  • Vacuum ranges: : 0-380 and 0-760 torr gauge
  • 150% overrange protection
  • 1/4" NPT male connection
  • Accurate internal clock (1 minute/year)
  • NIST calibration available

What's in the Box

  • Software & manual on CD-ROM
  • USB serial cable
  • Lithium 1/2AA battery

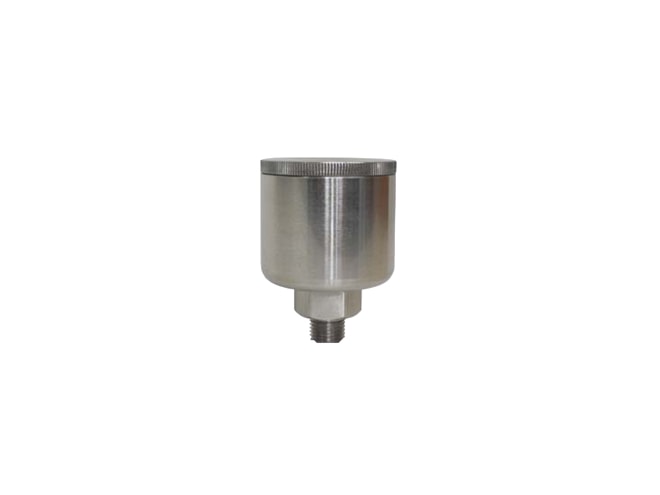

The Monarch Track-It Pressure / Vacuum / Temperature Data loggers are battery powered stand alone water tight compact data logger that records up to 64,000 samples. It can be configured to record both Pressure and Temperature or either parameter alone to maximize data storage space. The unit is easily configured using the included Track‐It Software. Simply connect a standard USB cable to the logger and an open USB port on your PC and the Track‐It Software automatically identifies the logger. Configure the unit to start and stop recording at a predetermined time and date or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The on board data storage is non‐volatile so data will not be lost in the event of a depleted battery. The Track‐It Pressure/Temperature Data Logger can be ordered in several pressure ranges: 0‐35, 0‐150, 0‐350, 0‐550, 0‐2000 and 0‐5800 PSI. The Track-It is also available in ranges of 760 Torr and 380 Torr. The logger is packaged in a rugged submersible 316L stainless steel housing and has a standard 1/4 inch NPT fitting. The replaceable internal lithium battery has up to a 5 year life.

Applications for the Monarch Track-It Pressure/Temp Data Logger

  • Industrial Process
  • Food Manufacturing
  • Water Supply Line
  • Hydrant Water Pressure
  • Household Water Pressure
  • Building Supply
  • Municipalities
  • HVAC
  • Oil and Gas
  • Petro Chemical
  • Compressors
  • Pumps
  • Water and Wastewater
Monarch 5396-9913 USB Cable
USB On-The-Go cable for connecting Track-It data loggers to Android devices
$10.00
Monarch Track-It Pressure Calibration Software
For use with all models of the Track-It Pressure Data Loggers
$249.00
Monarch 5396-9906 Battery
Replacement Lithium battery 1/2 AA 1.2AH
$25.00

Application Notes

Here's how some of our customers used this product.

Hose Testing Results

The Background: Our customer manufactures hydraulic hoses and seeks a means of recording test results.

The Problem: Hydraulic hoses must be able to withstand very high pressures. Our customer test every hose they make both as a way to share data with their customers as well as to protect themselves in the event a hose fails.

The Solution: We recommended the Monarch Track-It Pressure data logger, a compact, water-tight, stand-alone, logger that records up to 64,000 samples. The customer can easily incorporate the Track-it onto their test apparatus and print out onboard data without having to buy multiple parts and install extra wiring/programming.
