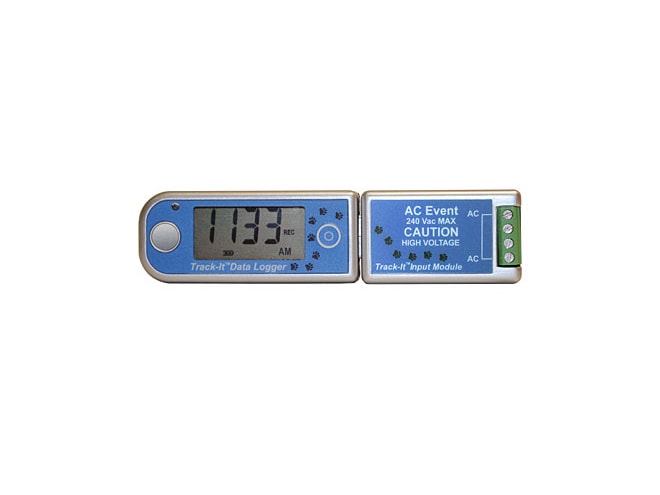

The Monarch Track-It AC event data logger is a battery powered, stand-alone compact
data logger that can record up to 64,000 on/off cycles. Typically used to monitor cycle
patterns of pumps, blowers and other electrical equipment powered by 120 or 240 VAC, the Track-It
can be easily configured using the included software.
Information, displayed on an easy-to-read LCD display, is user programmable and can be sequenced
by pressing the logger button. The multi-color LED indicator notifies the user of alarms and
other general activity.
The user can configure the unit to start and stop recording at a predetermined time and date or
only when an alarm condition is sensed. The sample storage rate can be set from one sample every
two seconds to one sample every 24 hours or it can be set to store a sample at every event. The
on-board data storage is non-volatile, so data will not be lost in the event of a depleted battery.
This data logger can also be used to record ambient temperature
along with on/off cycles. This can help diagnose heat vs. cycle time issues.
The Track-It software is a powerful Windows-based software package allows for
easy setup, retrieval, interpretation and export of the recorded data. Simply connect the Track-It
data logger to an open USB port and begin communicating immediately. You can view a numerical data
table or graphical representation of pressure and temperature readings relative to time. Track-It's
graph tools include zoom, cursor, min and max to examine and analyze the record. This Monarch
Instrument software turns your PC into a real time data acquisition system by allowing you to stream
graphical or tabular data directly to your PC. The one click export function to automatically export
stored data into an Excel spreadsheet.
