Starting at $355.00

Not in stock. Usually ships in 3-5 business days [?]

Need Help? Call 1-800-884-4967 8:00am to 5:00pm ET

Features

  • Provides switch and control capabilities
  • Replacement of multi-point float, conductivity and pressure level switches
  • WebCal, an innovative PC user interface that provides fast and accurate configuration
  • Compact sensor with 2” dead band and beam width optimized for small tank applications 49.2” (1.25 m) or less

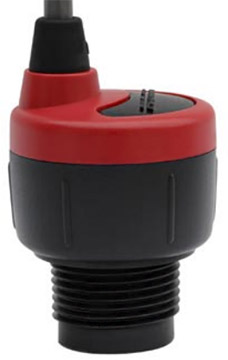

The Flowline DS14 EchoPod is an innovative level sensor that replaces floats, conductance and pressure sensors that fail due to dirty, sticking and scaling media in small tanks 49.2" (1.25 m) or less. The EchoPod is a general purpose sensor that provides non-contact switch and control capabilities in one package. Maintenance free, the EchoPod reduces tank system hardware through simplicity and consolidation. The EchoPod provides a total solution for fluid handling and automation.

The Flowline DS14 EchoPod enables flexible design applications for system integration or retrofit. The EchoPod is well suited for fluid handling and chemical feed applications that integrate process or control automation of small tanks mounted on tools, skids or machines. The rugged PVDF enclosure is well suited for a wide range of corrosive, waste or slurry type media, and can be broadly selected for atmospheric day tank, process vessel or dispenser, pump lift station and waste sump applications.

The Flowline DS14 EchoPod includes WebCal Software which provides simple software configuration-- using USB connectivity-- which enables flexible system integration or retrofit for suitable applications. WebCal's user interface makes configuration quick and simple for even novice computer users. By entering application requirements through pre-programed menus, WebCal will accurately configure the EchoPod to precise application requirements every time. Additionally, WebCal provides a printed wiring schematic and file management system that saves configurations for back-up, technical assistance or additional applications.

Flowline DS14 EchoPod Level Switch Specifications
Range 49.2" (1.25 m)
Accuracy 0.125" (3 mm)
Resolution 0.019" (0.5 mm)
Beam width 2" (5 cm)
Dead band 2" (5 cm)
Supply voltage 12-24 VDC/VAC
Consumption 0.5W
Contact type (4) SPST relays 1A
Relay fail-safety Power loss: Hold last
Power on: Open, close or hold last
Hysteresis Selectable
Configuration WebCal, USB 2.0
Temperature compensation Automatic over range
Process temperature 20° to 140°F; -7° to 60°C
Ambient Temperature -31° to 140°F; -35° to 60°C
Pressure MWP = 30 PSI
Enclosure Type 6P encapsulated, corrosion resistant & submersible
Enclosure material Polycarbonate
Strain relief material Santoprene
Trans. material PVDF
Cable length 48" (1.2 m)
Cable jacket material Polyurethane
Process mount 1" NPT (1" G)
Mounting gasket Viton
Classification General purpose
Approvals CE, cFMus
