Isotech Gemini 4857 Dry Block Calibrator

Fixed or removable insert dry block temperature calibrators, range choice of 35 to 550ºC or 50 to 700ºC. Learn more...

Starting at $5,790.84

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • 65 x 160mm calibration volume
  • Absolute stability in °C over 30min
    • Basic & Site models
      • ±0.02 @50°C, ±0.03 @250°C, ±0.04 @550°C
    • Advanced model
      • ±0.01 @100°C, ±0.015 @300°C, ±0.03 @550°C
  • Fixed block has four 8mm & four 19.5mm pockets
    • 35min heating time from 30 to 550°C
    • 110min heating time from 50 to 700°C
    • 35min cooling time from 550 to 275°C
    • 345min cooling time from 550 to 60°C
  • LRI model is a removable block with eight 8mm pockets
    • Can be custom drilled
    • 60min heating time from 30 to 550°C
    • 120min heating time from 50 to 700°C
    • 132min cooling time from 550 to 275°C
    • 420min cooling time from 550 to 60°C
Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

What's in the Box

  • Standard insert
  • 3 point traceable certificate

Isotech Gemini 4857 dry block calibrators have a high capacity allowing a large number of probes to be calibrated together. They are also suitable to accept large diameter probes with the block volume of a nominal 64 x 160mm.

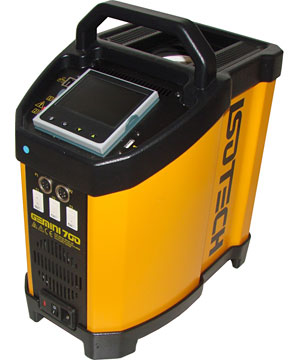

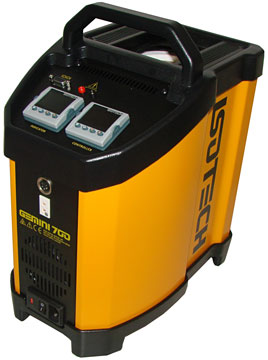

These award winning calibrators are easy to use and are available in three versions: the Basic, the Site and the Advanced. The Basic has a digital display of set and nominal temperature, the Site additionally includes a built-in independent temperature indicator for a reference probe. The Advanced controller has inputs for reference and test thermometers with a further range of sophisticated features including automatic temperature cycling, secure data logging and full color high resolution display.

Software

Isotech I-Cal Easy Calibration Software
Isotech I-Cal Easy Calibration Software

Powerful software automates the calibration process and provides certificates.

$4,946.61

Accessories

Please consider these optional accessories.

Isotech Standard Insert
Isotech Standard Insert

Additional standard removable insert for Gemini 550 LRI .

$592.78
Isotech Standard Insert
Isotech Standard Insert

Additional standard removable insert for Gemini 700 LRI.

$1,198.40
Isotech Semi-Standard Platinum Resistance Thermometer
Isotech Semi-Standard Platinum Resistance Thermometer

375 mm PRT with termination connector for temperatures from -50°C to 670°C.

$1,542.94
Isotech Type N Thermocouple
Isotech Type N Thermocouple

Type N Thermocouple for Gemini LRI (Range: 0 to 1300°C; use up to 700°C).

$308.16

This product can be used in the following applications:
