Features

  • Narrow band infrared thermometer measuring system
  • 2-Color 600 to 2000°C & Single Color 400 to 3000°C
  • Within ±1°C repeatability
  • 1°C resolution
  • 0.25 second response time
  • 0.100 to 1.900 emissivity compensation
  • Data Storage: Maximum 500 data points

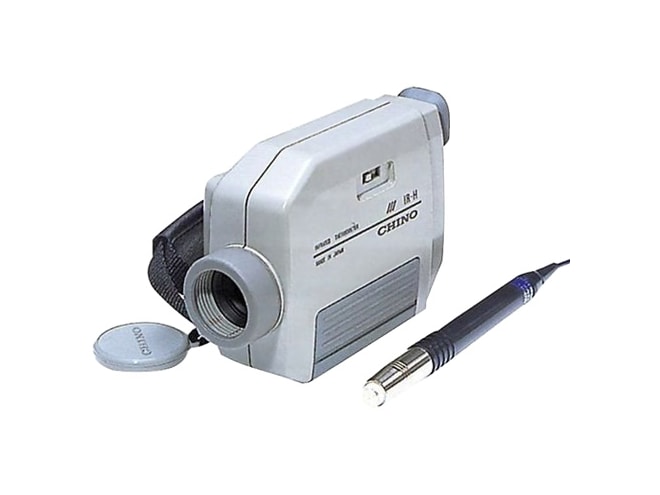

The CHINO IR-HQH infrared thermometer is a small, lightweight handheld infrared thermometer with a clear viewfinder. The high-function IR-HQH combines two wavelengths and has temperature ranges of 600 to 2000°C (2-color) and 400 to 3000°C (single color).

The thru-the-lens optical system of the CHINO IR-HQH infrared thermometer enables it to measure small targets from a long distance. A target size with a 20mm diameter can be measured at the distance of 4m. The measured value can be read on the internal digital display in the viewfinder and on the front panel.

Additionally, you can measure low temperature surfaces and compensate emissivity by connecting a K-type surface thermocouple to the CHINO IR-H series infrared thermometers. Math functions for the IR-HQH include maximum value, minimum value, average value, peak and delay.

Cables

CHINO RS-232C Interface Cable
RS-232C interface cable for use with the CHINO instruments
$55.00
In Stock

Power Supplies

CHINO AC Power Adapter
Input voltage 100 to 240VAC, output voltage 4.8VDC
$55.00

Software

CHINO IR-H Infrared Thermometer Data Logging Software
Real-time trend, multi-point monitoring & 1-point historical trend data management modes available
$160.00

Accessories

Please consider these optional accessories.

CHINO IR-H Series Infrared Thermometer Thermocouple
K-type thermocouple with a 500°C max and response time of 1.8 seconds
$130.00
CHINO IR-H Series Infrared Thermometer Thermocouple
K-type thermocouple with a 800°C max and response time of 4 seconds
$230.00
