Fluke 8845A Precision Digital Multimeters
Voltage up to 1000VDC with 0.0035% accuracy, current, resistance, and frequency measurements
Need Help? Call a Temperature Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- DC voltage of 100mV to 1000V
- AC voltage of 100mV to 750V
- 100Ω to 100MΩ resistance
- DC current of 100µA to 10A
- AC current of 10mA to 10A
- 3Hz to 300kHz frequency
- Continuity threshold selectable from 1 to 1000Ω
- 100μA or 1mA diode test current
- CAT I 1000V, CAT II 600V
- 3-year warranty
What's in the Box
- TL71 test lead set
- LCI line cord
- USB to RS-232 cable adapter
- FlukeView Forms software
- User's manuals (on CD)

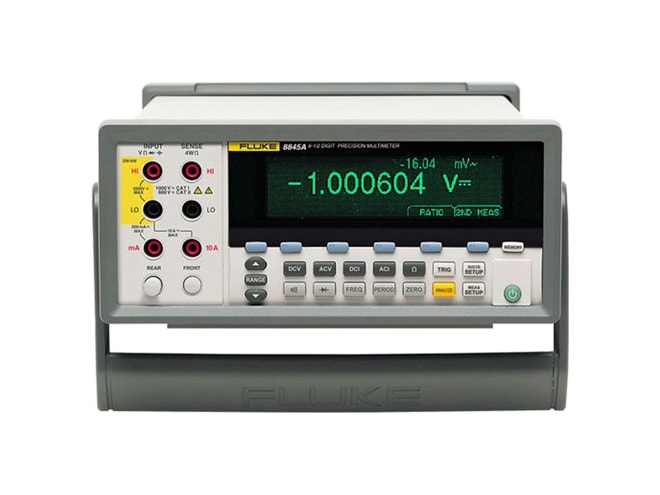

The Fluke 8845A precision digital multimeter is a high accuracy meter that provides industry-leading value for bench or systems applications including manufacturing test, research and development, and service. Designed for easy integration in automated test systems, the 8845A meter emulates several legacy bench DMMs, and features input terminals on both the front and rear of the instrument to simplify connections.
The 8845A has a large, bright dual display that enables users to measure two different parameters of the same signal from one test connection and view the results in graphic or numeric format. With graphical display modes including TrendPlot paperless chart recording, statistics and histograms, users can analyze data in real time for troubleshooting of signal quality issues such as drift, intermittants and stability.
These meters are equipped with serial, IEEE-488 and Ethernet interfaces, and provide multiple drivers to help ensure compatibility with existing or new standards. If you require a USB port, higher accuracy, and additional features, please view the Fluke 8846A.
The included software, FlukeView Forms Basic enables you to document, store and analyze individual readings or series of measurements, then convert them into professional looking documents. You can transfer data points from your meter to your PC and use the standard, non-customizable forms to display your readings in table or graphical form. For a larger array of forms or to customize your forms you can upgrade the software.
Please consider these optional accessories.
