Fluke 117/322 Electrician's Combo Kit
Value-packed kit that provides the meters and accessories an electrician needs
Need Help? Call a Temperature Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- Fluke 117 electrician's multimeter
- 600 V max between terminal and earth ground
- 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2 surge protection
- 6,000 count display
- Display updates at 4/sec
- 33 segment bar graph w/ 32 updates/sec
- 14° to 122°F operating temperature
- Fluke 322 clamp meter
- 1.8% basic accuracy
- Up to 0.01A and 0.1V resolution
- AC current to 400A
- AC volts to 600V
- DC volts to 600V
- Resistance measurement to 400Ω
The Fluke 117/322 electrician's combo kit is a value-packed kit that provides the ability to troubleshoot and solve problems more efficiently by providing all the needed meters and accessories an electrician would need in a compact carry case.

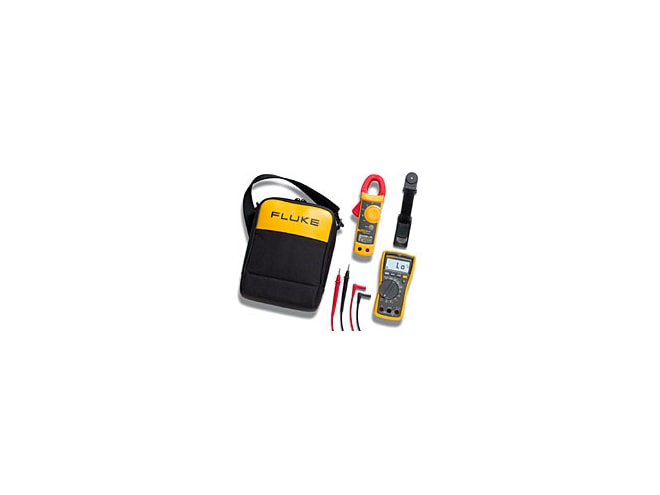

The Fluke 117/322 electrician's combo kit contains the following products:
Fluke 117 True RMS digital multimeter
This Fluke 117 True RMS digital multimeter's display has a large, white LED backlight to facilitate work in poorly lit areas. Fluke 117 electrician's multimeters measure True RMS for accurate measurements on non-linear loads. The meter has a 10A rating, with the ability to handle a 20A overload for 30 seconds. The meter measures resistance, continuity, frequency and capacitance. Signal fluctuations are easily recorded and identified with the Min/Max/Average over elapsed time capability.
Fluke 322 compact clamp meter
The Fluke 322 clamp meter is designed to verify the presence of load current, AC voltage and continuity of circuits, switches, fuses and contacts. These small and rugged clamp meters are ideally suited for current measurements up to 400A in tight cable compartments. The Fluke 322 meter also offers DC voltage measurements.
ToolPak magnetic meter hanging strap
The Fluke ToolPak - the meter hanging solution. The kit includes universal hanger clips (2), hook & loop straps (2 lengths) and a strong magnet. The components of the kit can be combined to meet most hanging needs.
C115 deluxe carrying case with shoulder strap
The Fluke C115 deluxe carrying case is constructed with durable polyester and includes two padded pockets for protection of two test tools, such as a digital multimeter and 60 Series IR thermometer and a pouch for test leads and other accessories.
Fluke TL75 hard point test lead set
The Fluke Hard Point™ test lead set includes one pair of red and black comfort grip probes and 48 inch, PVC-insulated test leads with right-angle shrouded banana plugs, recommended for general purpose measurements.
Please consider these optional accessories.
