Dakota Ultrasonics MX Series Thickness Gauges

Precision ultrasonic thickness gauges with a selection of models to meet the needs of a variety of applications.

Dakota Ultrasonics MX Series Thickness Gauges
Dakota Ultrasonics MX-1 Thickness Gauge
  • Dakota Ultrasonics MX-1 Thickness Gauge
    Dakota Ultrasonics MX-1 Thickness Gauge
  • Dakota Ultrasonics MX-2 Thickness Gauge

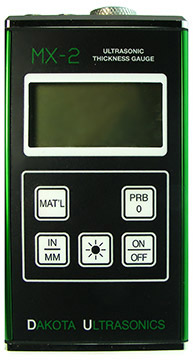

    Dakota Ultrasonics MX-2 Thickness Gauge
  • Dakota Ultrasonics MX-3 Thickness Gauge
    Dakota Ultrasonics MX-3 Thickness Gauge
  • Dakota Ultrasonics MX-5DL Thickness Gauge
    Dakota Ultrasonics MX-5DL Thickness Gauge
  • Dakota Ultrasonics MX Thickness Gauge with Case

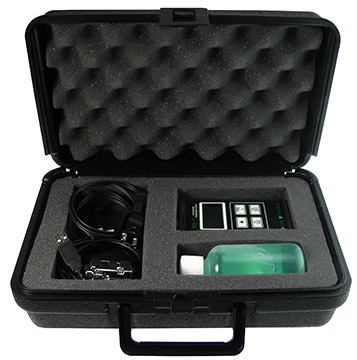

    Dakota Ultrasonics MX Thickness Gauge with Case
Dakota Ultrasonics MX Series Thickness Gauges
Dakota Ultrasonics MX-1 Thickness Gauge
Dakota Ultrasonics MX Series Thickness Gauges
Dakota Ultrasonics MX-2 Thickness Gauge
Dakota Ultrasonics MX Series Thickness Gauges
Dakota Ultrasonics MX-3 Thickness Gauge
Dakota Ultrasonics MX Series Thickness Gauges
Dakota Ultrasonics MX-5DL Thickness Gauge
Dakota Ultrasonics MX Series Thickness Gauges
Dakota Ultrasonics MX Thickness Gauge with Case
Retired products cannot be ordered
The Dakota Ultrasonics ZX Series Thickness Gauges are the replacements.

View Company Reviewsby Trustpilot
Manufactured
  • By Dakota NDT
Includes
  • FREE Ground Shipping
  • FREE Lifetime Tech Support
Product Manual Product Specs (2 Files)
Questions?
Call 1-800-884-4967 or email sales@instrumart.com. Open 8:00 am to 5:30 pm ET.
Trustpilot

Overview

Features

  • Meter range of 0.025 to 19.999 inches (0.63 to 500mm)
  • Switch to select English or Metric units
  • Velocity of 0.0492 to 0.3937in/μs (1250 to 10,000m/sec)
  • Accepts dual-element transducers
    • 1 to 10MHz frequency
  • Bar graph indicates stability of reading
  • Data logs up to 1000 readings (MX-5DL)
  • Differential and alarm modes (MX-5 and MX-5DL)
  • RS232 output for data transfer
  • Easy to read 4.5 digit backlit LCD
  • Operates for up to 200 hours on 2AA batteries
  • 5-year limited warranty
  • Factory calibration traceable to national standards
  • CE approved

What's in the Box

  • Thickness transducer
  • Couplant
  • AA batteries
  • Manual
  • Carrying case
  • Certificate of calibration

Description

Dakota Ultrasonics MX Series Thickness Gauges require no special training to operate and are able to measure the thicknesses of common materials from 0.025 to 19.999 inches (0.63 to 500 millimeters) with the appropriate transducer. The standard 5MHz transducer has a range of 0.04 to 6 inches on steel (this transducer can be substituted for another model, please contact us for details).

Dakota MX-1 Ultrasonic Thickness Gauge

The MX-1 will hold a single velocity, making it the perfect choice where one material is being tested day after day without the need to re-calibrate to different materials on the fly. With the preset velocity in the gauge, you simply turn it on and you are ready to work. The velocity is set with a simple software program that is supplied with the unit.

Dakota MX-2 Ultrasonic Thickness Gauge

The MX-2 is ideal for the person that tests a few different materials regularly. Featuring 8 common preset material types and 2 user programmable types via simple PC program, it's a little more flexible than the MX-1.

Dakota MX-3 Ultrasonic Thickness Gauge

The MX-3 provides users the ability to field calibrate on the fly. This model offers extreme flexibility and accuracy to calibrate to a variety of materials instantly. Simply tell the MX-3 one known thickness point located on the test material, and the MX-3 will calculate the material type for you. The Dakota MX-3 ultrasonic thickness gauge is also equipped with a two point calibration option, providing the user with extreme accuracy. Another special feature of the MX-3 is the high speed scan mode. In this mode, the MX-3 takes 16 readings per second rather than 4 readings per second in standard measurement mode. The readings are viewable while scanning. Simply remove the transducer from the area being tested and the Dakota MX-3 ultrasonic thickness gauge will display the minimum thickness in the area scanned.

Dakota MX-5 Ultrasonic Thickness Gauge

The MX-5 has all the features of the MX-3 plus an audible and visual alarm mode. In alarm mode, the user can set a nominal thickness value. When measurements fall above or below the set nominal value, a red light and audible beeper is displayed and sounded. The MX-5 also features a differential mode. In differential mode, the user sets a target thickness value and the Dakota MX-5 ultrasonic thickness gauge will display the difference ( +/- ) from the target value. The MX-5 is also equipped with an RS232 port out. This enables the user the ability to send measurements to an external data collection device or directly to a PC.

Dakota MX-5DL Ultrasonic Thickness Gauge

The MX-5DL has all the features of the MX-5 plus an internal data logger that stores a total of 1000 readings in 10 files of 100 readings per file. This gives the user the ability to store, and download the stored measurements directly to a PC using DakView software program (software and transfer cable are included).

Documents

Spec Sheets

  • Dakota Ultrasonics MX-1 & MX-2 Thickness Gauge Datasheet PDF (347 KB)
  • Dakota Ultrasonics MX-3, MX-5 & MX-5DL Thickness Gauge Datasheet PDF (404 KB)

Manuals

  • Dakota Ultrasonics MX-1 Thickness Gauge Manual PDF (365 KB)
  • Dakota Ultrasonics MX-2 Thickness Gauge Manual PDF (345 KB)
  • Dakota Ultrasonics MX-3 Thickness Gauge Manual PDF (415 KB)
  • Dakota Ultrasonics MX-5 Thickness Gauge Manual PDF (440 KB)
  • Dakota Ultrasonics MX-5DL Thickness Gauge Manual PDF (467 KB)

Links

  • All possible part numbers

Accessories

Dakota NDT Dual Element Transducers
Dakota NDT Dual Element Transducers

Dual element transducers for Dakota NDT thickness gauges.

Some Models in Stock
Starting at $330.00
Dakota NDT Couplant
Dakota NDT Couplant

Acoustic couplant to apply to the sensor face to ensure a complete acoustic pathway between the sensor and material being measured.

Some Models in Stock
Starting at $20.00
Dakota NDT X-000-0001 5 Step Calibration Block
Dakota NDT X-000-0001 5 Step Calibration Block

5 step calibration block from 0.100 to 0.500 inch, made of 4340 steel.

In Stock
$235.00
Dakota NDT X-000-0002 4 Step Calibration Block
Dakota NDT X-000-0002 4 Step Calibration Block

4 step calibration block from 0.250 to 1.0 inch, made of 4340 steel.

In Stock
$235.00
Dakota NDT Carrying Case
Dakota NDT Carrying Case

Wood carrying case for Dakota NDT calibration blocks.

$60.00
Dakota NDT Dual LEMO 00 to Armored LEMO 00 Cable
Dakota NDT Dual LEMO 00 to Armored LEMO 00 Cable

4 foot cable for the Dakota Ultrasonics MX1-DL & MX2-DL series.

$175.00
Dakota NDT Dual LEMO 00 to Armored Microdot Cable
Dakota NDT Dual LEMO 00 to Armored Microdot Cable

4 foot cable for the Dakota NDT PMX2-DL, UMX-2, MX1-DL, MX2-DL & CMX series.

$175.00
Dakota NDT Dual LEMO 00 to High Temperature Armored Microdot Cable
Dakota NDT Dual LEMO 00 to High Temperature Armored Microdot Cable

4 foot cable for the Dakota NDT PMX2-DL, UMX-2, MX1-DL, MX2-DL & CMX series.

$195.00
Dakota NDT Dual LEMO 00 to Microdot Cable
Dakota NDT Dual LEMO 00 to Microdot Cable

Cable for Dakota NDT MX1-DL, MX2-DL, FX70, and FX80 series.

Starting at $120.00
Dakota NDT Dual LEMO 00 to LEMO 00 Cable
Dakota NDT Dual LEMO 00 to LEMO 00 Cable

Cable for Dakota NDT CMX, MX1-DL, MX2-DL, FX70 and FX80 series.

Starting at $120.00

Applications

This product can be used in the following applications:

  • Aerospace
  • Automotive
  • Aviation
  • Corrosion Inspection
  • Oil, Gas and Petrochemical
  • Weld Quality Testing
  • Wind Power
