Overview

Features

  • Measure Accuracy
    • RTD: .2 to .33°C
    • Thermocouples: .7 to 1.8°C
    • Voltage DC: 0.025% to 0.02%
    • Current DC: 0.02%
    • Resistance: 0.1 to 1.5%
  • Source Accuracy
    • Voltage DC: 0.025 to 0.02%
    • Resistance: 0.15Ω to 1Ω

What's in the Box

  • AC70A test clips
  • One pair of stackable test leads
  • TL75 test leads
  • CE and CSA markings
  • Users manuals on CD-ROM
  • NIST- traceable calibration report and data

Description

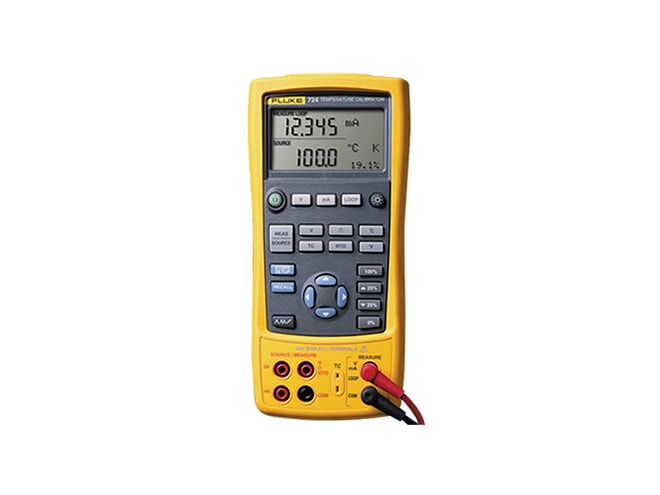

The Fluke 724 temperature calibrator is one tool that is able to test all temperature sensors and transmitters in your plant. The Fluke 724 can measure and source 12 thermocouples types and seven RTD types, plus volts and ohms. The 724 even handles high-speed pulsed RTD circuits and provides loop power.

The dual display lets you source temperature and view loop current at the same time. With its simple, "no menus" controls, it is easy to operate, too. The easy to read dual display lets view input and output simultaneously. Fluke 724 temperature calibrators can measure RTDs, thermocouples, ohms and volts to test sensors and transmitters. The meter can also source/simulate thermocouples, RTDs, volts and ohms to calibrate transmitters. Linearity tests can be performed with 25% and 100% steps. The Fluke 724 temperature calibrator can also execute remote tests with auto step and auto ramp functionality.

Other great user-friendly features of the Fluke 724 temperature calibrator include the ability to store frequently-used test setups for later use. The backlight facilitates working in dark or poor light, the meter has a large battery capacity of four AA cells, typically providing 25 hours of battery life.
