Starting at $599.00
  • Not in stock. Usually ships in 1-3 business days

Features

  • 6 digit alphanumeric backlit LCD display
  • Light Power 7.9 watts @ 6000 FPM, 150 mJoules up to 3100 FPM
  • Flash duration: 10 - 30 µsec typical
  • Flash Range (internal): 100 - 12,500 FPM
  • Flash Range (external): 0 - 14,000 FPM
  • Flash Rate Accuracy Greater of ±0.01% of reading or ±0.5 FPM
  • External Input: 0 to 5 volt TTL compatible (+12V pk max) 20 µsec min pulse width
  • Tachometer range: 10 - 250,000 RPM
  • Tachometer accuracy: ± 0.01% or 0.1 RPM
  • Adjustment: Four Quadrant tuner button with blinking decade select for flash rate up and down, multiply by 2 or divide by 2
  • Modes Internal, External, Tachometer, Preset, x or ÷2, Locked On
  • Meets RoHS standards

What's in the Box

  • NIST traceable certificate

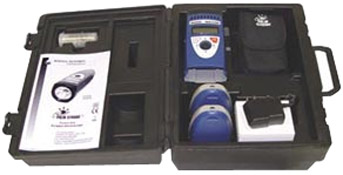

The Monarch Palm Strobe X stroboscope is the new industrial standard for high intensity, multi-function compact Xenon stroboscopes. Featuring excellent brightness, exceptional features, and extra long battery life, the Monarch Instrument Palm Strobe X stroboscope has a unique one-touch joystick-type button that allows single hand operation for fast fractional RPM tuning.

The Palm Strobe X features modes for internal tuning, external TTL input, and tachometer display. Eight memory positions provide rapid recall of user defined frequencies. With internal tuning mode it has a flash range of 100 to 12,500 flashes per minute (FPM) with an accuracy of ±0.5 FPM (or ±0.01% of reading) and a resolution of ±0.1 FPM. Using external sensors it's flash range is 0 to 14,000 FPM with an accuracy of ±0.2 FPM. External input is 0-5VDC and TTL compatible. The tachometer mode to allows measurements from 5 to 250,000 RPM with an accuracy of ± 0.01% or 0.1 RPM.

This stroboscope can be used alone or with external sensors. When used in conjunction with the SPSR sensor interface module it is compatible with ROS-P, IRS-P, and MT-190P sensors. Sensors must have phone plug connections.
