Overview

Features

  • Ranges:
    • AC current: 0.1 to 1000A
    • DC current: 0.1 to 1000A
    • AC voltage: 0.1mV to 600V
    • DC voltage: 0.1mV to 600V
    • Resistance: 0.1 to 40MΩ
    • Capacitance: 0.001nF to 40,000µF
    • Frequency: 0.001 to 4kHz
    • IR Temperature: -58 to 518°F
    • Type-K temperature: -4 to 1400°F
  • Distance to spot : 8:1
  • Laser pointer for IR temperature
  • Peak function captures inrush currents and voltage transients
  • Data Hold 'freezes' data in display
  • 1.7 inch jaw opening for conductors up to 750MCM or two 500MCM Auto power off
  • Autoranging with manual range button
  • 4000 count backlit dual display

What's in the Box

  • Test leads
  • 9V battery
  • Case
  • Type K probe (-4 to 482°F)

Description

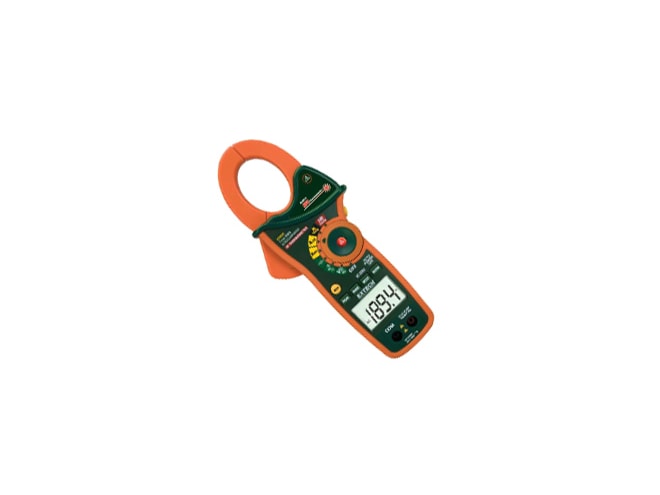

The Extech EX830 clamp meter & IR thermometer is a 1000A True RMS clamp-on multimeter that features a built-in infrared thermometer with a laser pointer that's an excellent troubleshooter for locating hot spots and overheating motors. The EX830 is a versatile instrument capable of accurate measurements of AC current, DC current, AC/DC voltage, resistance, capacitance, frequency and temperature via a type-K probe. The EX830 features 1.7" jaws, large enough for cables up to 750MCM (or two 500 MCM cables). The ergonomically designed double-molded housing offers a better grip for one-hand operation and results are shown on the backlit, 4000 count dual LCD display.

Additional features of Extech EX830 clamp meters include: diode test, audible continuity beeper, autoranging with manual range button, Data Hold, Min/Max, Auto Power Off, and Peak Hold that captures inrush currents and transients.

The meter is available with limited NIST certification which covers all functions except IR temperature.

In Stock

Manufacturer Stock

This stock is typically available to ship in 3 - 5 working days.

Part Number Price Available
EX830
$239.99 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-5 business days". Click here to select options
