Extech EX840 Clamp Meter & IR Thermometer

Industrial Clamp-on multimeter with CAT IV-600V safety rating and built-in non-contact infrared thermometer.

Extech EX840 Clamp Meter & IR Thermometer
Extech 800 Series Clamp Meters Product Video

Retired products cannot be ordered

Please contact Instrumart for a recommended replacement.

View Company Reviews

Manufactured

By Extech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Features

Ranges:
- AC current: 0.1 to 1000A
- DC current: 0.1 to 1000A
- AC voltage: 0.1mV to 1000V
- DC voltage: 0.1mV to 1000V
- Resistance: 0.1 to 40MΩ
- Capacitance: 0.001nF to 40,000µF
- Frequency: 0.001 to 4kHz
- IR Temperature: -58 to 518°F
- Type-K temperature: -4 to 1400°F
Distance to spot : 8:1
CAT IV-600V safety rating
Laser pointer for IR temperature
Peak function captures inrush currents and voltage transients
1.7 inch jaw opening for conductors up to 750MCM or two 500MCM
Autoranging with manual range button
4000 count backlit dual display

What's in the Box

CAT IV test leads
9V battery
Case
Type K probe (-22 to 572°F)

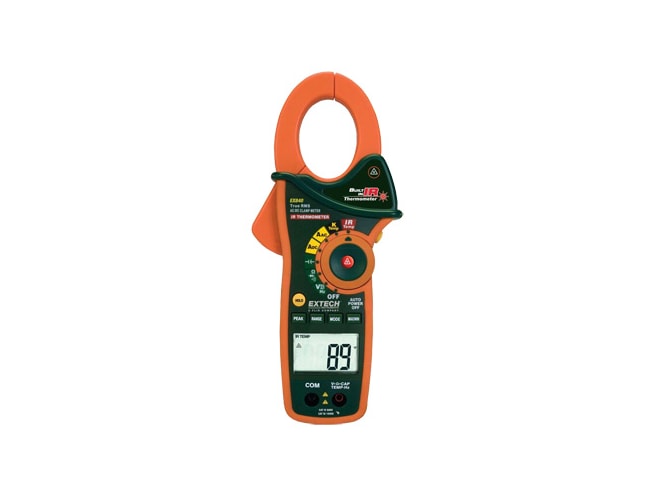

The Extech EX840 clamp meter & IR thermometer is a CAT IV 1000A true RMS clamp-on multimeter that features a built-in infrared thermometer with a laser pointer that's an excellent troubleshooter for locating hot spots and overheating motors. Ideal for industrial applications, the EX840 is capable of accurate measurements of AC current, DC current, AC/DC voltage, resistance, capacitance, frequency and temperature via a type-K probe. The EX840 features 1.7" jaws, large enough for cables up to 750MCM (or two 500 MCM cables). The rugged, ergonomically designed double-molded housing offers a better grip for one-hand operation and results are shown on the backlit, 4000 count dual LCD display.

Additional features of Extech EX840 clamp meters include: diode test, audible continuity beeper, autoranging with manual range button, Data Hold, Min/Max, Auto Power Off, and Peak Hold that captures inrush currents and transients.

The meter is available with limited NIST certification which covers all functions except IR temperature.
