Watlow Pipe Clamp Thermocouple

General application pipe clamp style thermocouple.

Starting at $28.70

View Company Reviews
Manufactured
Includes
Availability

Features

  • Single element
  • Termination options: 2.5 inch split leads or std male plug
  • 12" of lead included
  • Call for custom options
  • Short lead time

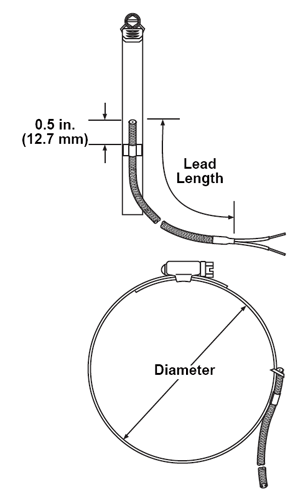

The Watlow pipe clamp thermocouple comes with 24 gauge stranded fiberglass lead with stainless steel overbraid, grounded junction, and a split lead termination. The stainless steel clamp allows temperature measurement without drilling or tapping. The Watlow pipe clamp thermocouple is ideal for measuring pipe temperatures.

There are many options available which tailor the Watlow pipe clamp thermocouple to your specific application. If the configurations offered are unable to satisfy your requirements, custom manufactured sensors to your exacting specifications are available. Please contact us for details.
