Starting at $5,222.93
  • Usually ships in 2-3 weeks



  • Temperatures from -30° to 500°C (-22°F to 932°F)
  • Accuracy to ±0.4°C
  • Stability to ±0.1°C
  • 57mm target size
  • Target emissivity: 0.95 (±0.02 from 8-14μ)
  • RS-232 included with Interface-it software


Whether you're using in-line or handheld infrared pyrometers, you need good calibration standards to verify their accuracy. Fluke Calibration (formerly Hart Scientific) portable infrared calibrators provide stable blackbody targets for calibrating non-contact infrared thermometers from -30°C to 500°C (-22°F to 932°F).

Accurate Fluke calibrators feature a large, temperature controlled blackbody target with a diameter of 2.25" (57 mm), which offers a large field of view area for optical variations in infrared thermometers. The emissivity of the isothermal target is set at 0.95 (±0.02%), and the target temperature can be controlled in set-point increments of 0.1° from -30° to 500°C (-22°F to 932°F).

For even higher precision, a well is located directly behind the 9132 and 9133 infrared calibrator's blackbody surface for contact calibration of the blackbody.

9132 / 9133 portable infrared calibrators are as easy to use as "point and shoot." Simply set the desired blackbody temperature from the convenient front panel control buttons, wait a few minutes for equilibrium, and point the gun at the target. The radiated energy from the blackbody is measured by your IR thermometer. Simply compare its reading to the display on the Model 9132 / 9133 and record the difference.

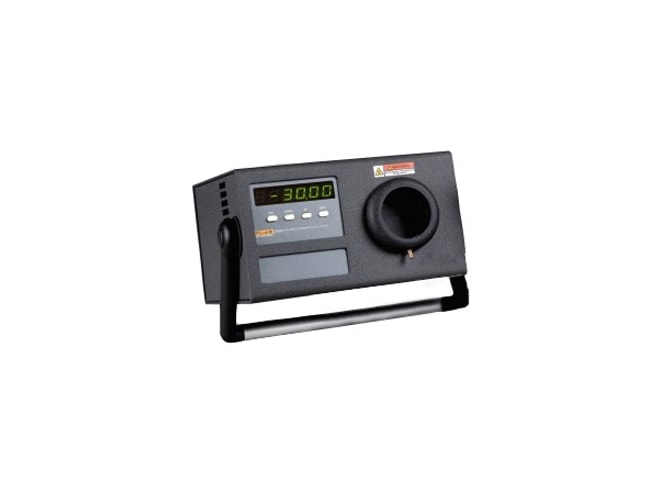

Model 9132 Portable Infrared Calibrator
For IR calibrations above normal ambient, the Model 9132 provides a stable blackbody target up to 500°C (932°F). With accuracy to ±0.5°C and stability to ±0.1°C, the 9132 can certify most handheld pyrometers.
Short heating and cooling times mean you won't have to wait long to get your work done. From room temperature to 500°C (932°F), the Model 9132 will be stable within 30 minutes. You won't find a more compact IR calibrator.
The Model 9133 Portable Infrared Calibrator
If you're calibrating IR guns at cold temperatures, you'll love the 9133 With solid-state cooling technology, this new IR calibrator reaches -30°C (22°F) in normal ambient conditions. With a conveniently located dry gas fitting on the front bezel, ice build up on the target can be avoided. At the upper end of its range, the 9133 provides stable temperatures to 160°C (320°F).
With heating and cooling times of about 15 minutes from ambient to either extreme, the 9133 portable infrared calibrator gets you to temperature quickly and performs when it gets there. Compare your IR devices to the temperature display which is factory calibrated to be within ±0.4°C (±0.7°F).

No other IR calibrators give you this level of precision in such compact packages. Whatever your temperature application, trust a model 9132 / 9133 to solve it.
