Name: Druck Ingress Dirt Moisture Trap
Price: 239.0 USD
Availability: InStock

$239.00 Found a better price? Let us match.

Effective May 14th, 2025, Druck has added a 21% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Part Number

IDT600-2

Manufactured

By Druck

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

2 in stock

Features

500 PSI
Use with all Druck Portable Calibrator Products

This product is an accessory for the following products:

Druck DPI 320 / 325 Pressure Calibrator

Portable pneumatic high pressure calibrator generates pressures to 3000 psi.

RETIRED

Druck DPI 330 / 335 Pressure Calibrator

Portable hydraulic high pressure calibrators generate pressures up to 10,000 psi.

RETIRED

Druck DPI 605 Pressure Calibrator

Simple and cost effective means of meeting the calibration requirements of ISO 9000 and other quality standards.

RETIRED

Druck DPI 610 / 615 IS Pressure Calibrator

Intrinsically safe portable pressure calibrators for pressure ranges from -14.7 to 6,000 psi.

RETIRED

Druck DPI 610LP / 615LP Pressure Calibrator

Portable low pressure calibrators for pressure ranges from ±1.0 to ±60 inH2O.

RETIRED

Druck DPI 740 Barometer

Portable precision barometer with ranges to 103 inHg absolute.

RETIRED

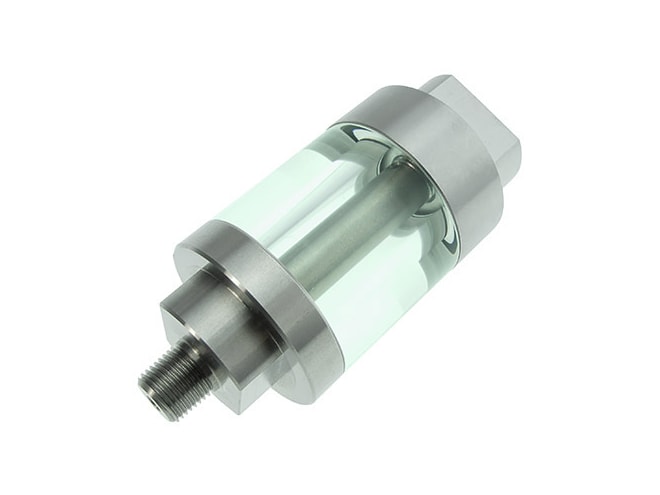

The IDT 600 is an effective barrier for protecting Druck portable pressure calibrators against the ingress of dirt and moisture which may be present in the gaseous pressure media or pneumatic devices under test. Installed directly onto the standard calibrator pressure port, regular use of the IDT 600 will prevent contamination of the calibrator pneumatic system, improving it's long term reliability and reducing maintenance costs. In addition it prevents cross contamination of the devices under test.

The IDT600 has no diaphragm or other internal components which could create a pressure drop and does not affect calibration accuracy. The unit is simple to dismantle and easy to clean. It should be periodically cleaned to prevent excessive contamination buildup which may overflow into the calibrator. The top and bottom sections are simply unscrewed, releasing the transparent chamber which is then wiped clean.

This product is recommended for all pneumatic pressure calibrators, particularly the DPI605.
