E+H Nivotester FTL325P Point Level Switch

Vibronic switching unit with intrinsically safe signal circuit for use with Liquiphant and Soliphant sensors. Single and three channel configurations available.

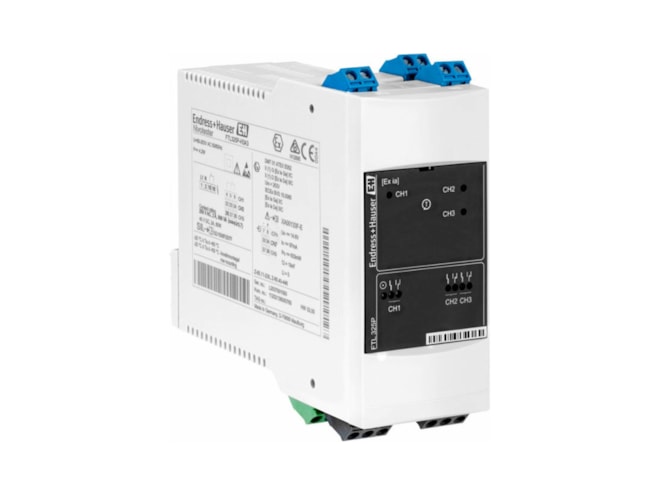

E+H Nivotester FTL325P Point Level Switch - three channel option
E+H Nivotester FTL325P Point Level Switch - single channel option

Starting at $955.55

Effective May 12th, 2025, Endress+Hauser has added a 4.5% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Measuring Principle: vibronic solids/liquids
PFM technology
Communication:
- 1 channel: 1 level SPDT + 1 alarm SPST
- 3 channel: 3 level SPDT + 1 alarm SPST
Supply/Communication:
- 85 to 253V AC
- 20 to 30V AC/ 20 to 60V DC
Ambient temperature(s):
- Single installation: -20 to 60°C (-4 to 140°F)
- Rail mounting: -20 to 50°C (-4 to122°F)
Pluggable terminal blocks
Galvanically isolated inputs
DIN Rail housing
Certification(s): ATEX, FM, CSA, IEC Ex, TIIS, INMETRO, NEPSI, EAC
Safety approval(s): Overfill prevention WHG, highest SIL safety

The E+H Nivotester FTL325P Point Level Switch is used for point level detection in tanks containing liquids and silos containing bulk solids. For use with vibronic level probes, and can be applied in hazardous areas. Additionally the FTL325P contains overfill prevention for tanks containing flammable or non-flammable fluids hazardous to water, and dry running protection for pumps. Additional features include pluggable terminal blocks, compact housing, and up to three channels for two-point control and point level detection. The compact housing design allows for series mounting on a standard DIN rail in the cabinet. Up to SIL 3 functional safety requirements in accordance with IEC 61508 when using the Liquiphant M/S with electronic insert FEL57 or Liquiphant FTL51B, FTL62, FTL64 with electronic insert FEL67.

E+H Nivotester FTL325P Point Level Switch applications:

Point level detection in liquid tanks and bulk solids silos, also in hazardous areas
For sensors in Zone 0 or Zone 20
Liquid detection in pipes for dry-running protection of pumps
Overfill prevention

Spec Sheets

E+H Nivotester FTL325P Point Level Switch Datasheet (580 KB)

Manuals

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
FTL325P-O1E1 Show Configuration	$955.55	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
