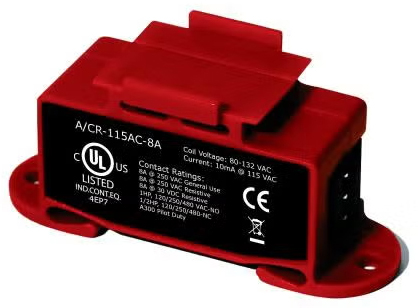

ACI CR Series Command Relay
Form 1C SPDT relay containing both normally open (N/O) and normally-closed (N/C) contacts, 35mm DIN rail mounting flange for use with any 35mm ACI current sensor or switch.
Overview
Features
- Form 1C contact form (SPDT contact)
- >30,000 cycles, typical electrical life (relay)
- >10,000,000 cycles, typical mechanical life (relay)
- PC/ABS (polycarbonate/ABS blend) enclosure material
- UL94-V0 flammability rating
- 5-year limited warranty
Description
The ACI CR Series command relay provides start/stop control and status monitoring for motors, pumps, fans, compressors, and other equipment. Each unit uses a Form 1C SPDT relay with normally open and normally closed contacts. The 35 mm DIN-rail mounting flange is compatible with ACI current sensors and switches, and up to two devices can be stacked to reduce panel space. The relays can also be panel mounted and are UL 508 compliant for industrial equipment applications.
The separate relay design allows any command relay model to be paired with any compatible ACI current sensor or switch, reducing the number of different components required. Applications include equipment start/stop control, status monitoring, and general-purpose industrial relay functions. The command relay series is covered by a five-year limited warranty.
ACI CR Series Command Relay Applications
- Start/stop/status
- Motors
- Pumps
- Fans
- Compressors
- Din rail mountable control relay
- Industrial equipment
