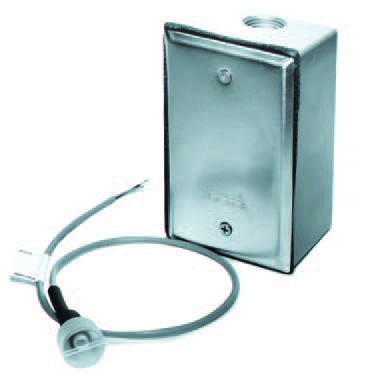

ACI A/LLS Series Light Level Sensor and Transmitter

Starting at $61.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 7-10 business days
Product Manual Product Specs

Features

  • Sensor:
    • 1/2" NPT process thread
    • Acrylic polycarbonate housing material
    • 18in (45.7cm) lead length
    • 0.16in nominal (2.69mm) cable diameter
    • 22 AWG (0.65mm) conductor size
    • Polyvinylchloride unshielded cable lead wire insulation
    • UL 2464 80C 300V; CSA AWM II A/B FT4 wire rating
    • Tin plated copper conductor material
    • 100V pk maximum voltage
  • Transmitter:
    • 24 to 35 VDC supply voltage
    • 150K ohms input impedance
    • 4-20mA (3-wire) output current signal range
    • 500 ohms maximum load resistance
    • Aluminum, IP32 (NEMA 3R) enclosure material and specifications

The ACI A/LLS Series Light Level Sensor is used to control indoor and outdoor lighting based on available light. The sensors can be installed in a NEMA 3R enclosure, with resistance exceeding 1 MΩ in darkness and dropping below 1.5 kΩ in bright light.

The A/LLS-T includes a transmitter that provides a non-linear 4–20 mA output, calibrated to 4 mA in darkness and 20 mA in bright light. The 0–500 model is typically used for outdoor parking lot lighting and signage, while the 0–100 model is intended for indoor lighting. Both models are suitable for lighting control and building automation systems.

ACI A/LLS Series Light Level Sensor and Transmitter Applications

  • Indoor/outdoor lighting control systems
  • Building automation systems
