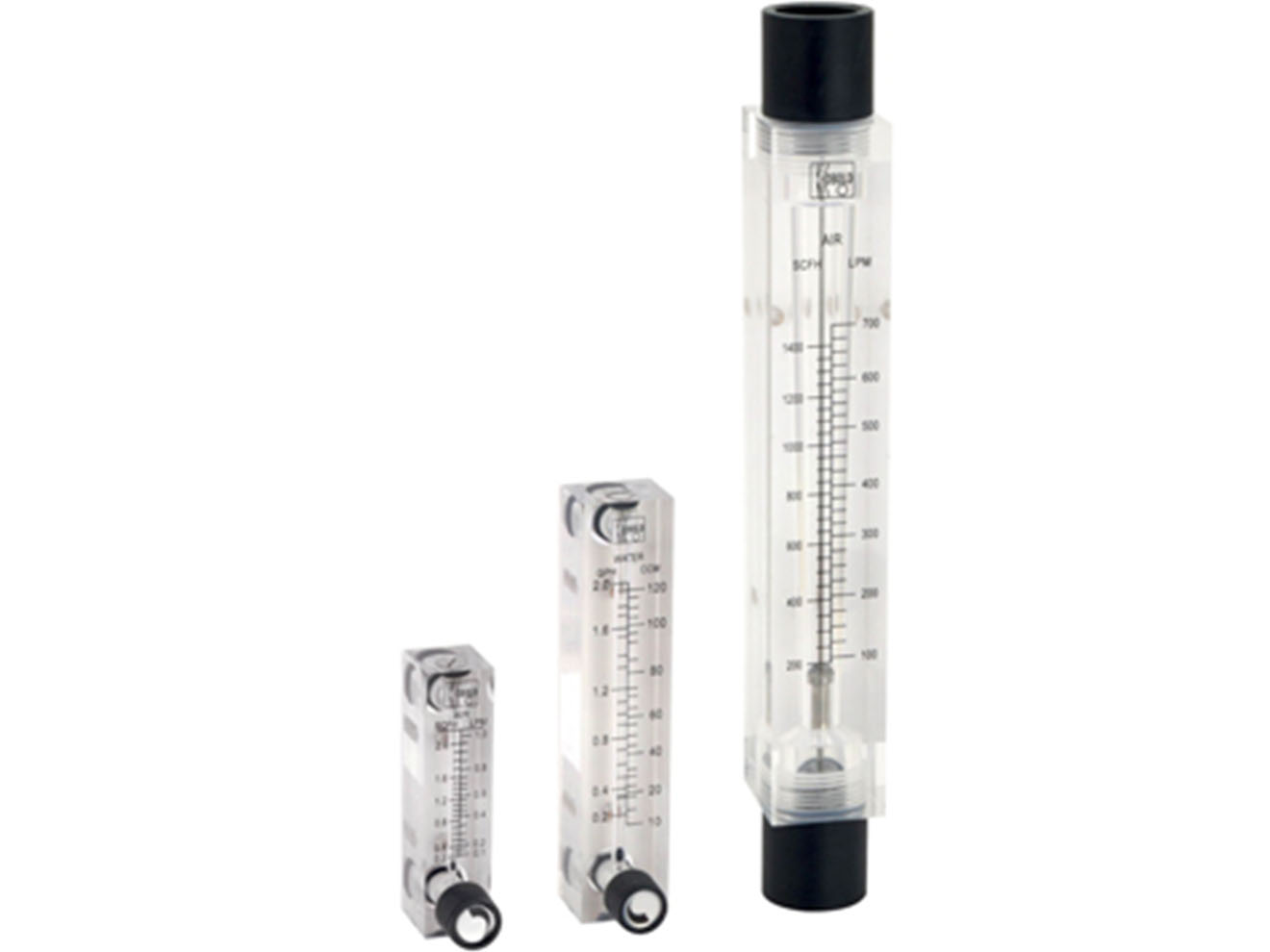

Kobold KFS Low Volume Rotameter Flow Meter

Low volume variable area flow meter for air and water measurement with acrylic housing, ±2% to ±5% accuracy, and ranges up to 1400 SCFH air or 160 GPH water.

Starting at $97.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2 weeks
Product Manual Product Specs

Features

  • Measuring ranges:
    • Water 0.08 to 160 GPH
    • Air 0.08 to 1400 SCFH
  • Accuracy: ±2% to ±5% of full scale
  • Maximum pressure: 90 PSI
  • Maximum temperature: 145°F
  • Connection: 1/8in to 1in NPT female
  • Materials: Acrylic housing with stainless steel or PVC connections
  • Needle valve: Integrated stainless steel needle valve available (standard on KFS-2 and KFS-4 models)

The KOBOLD KFS low volume rotameter flow meter is a variable area flow meter for measuring low flow rates of liquids and gases. It features a one piece acrylic body with stainless steel or PVC connections, depending on the model, and provides measuring ranges from 0.08 to 160 GPH for water and 0.08 to 1400 SCFH for air. The KFS is available with accuracy from ±2% to ±5% of full scale, a maximum pressure rating of 90 PSI, and a maximum operating temperature of 145°F.

The KFS is offered in multiple model configurations with rear or top/bottom NPT female connections ranging from 1/8in to 1in. Stainless steel needle valves are standard on KFS-2 and KFS-4 models, and a panel installation kit is available for the KFS-5 model. Wetted material options vary by model and include acrylic, stainless steel, PVC, glass, PTFE, FPM, and NBR.

KOBOLD KFS Low Volume Rotameter Flow Meter Applications:

  • Air sampling equipment
  • Aquaculture
  • Desalination equipment
  • Gas analyzers
  • Medical systems
  • Photoprocessing equipment
  • Water treatment and distribution systems
