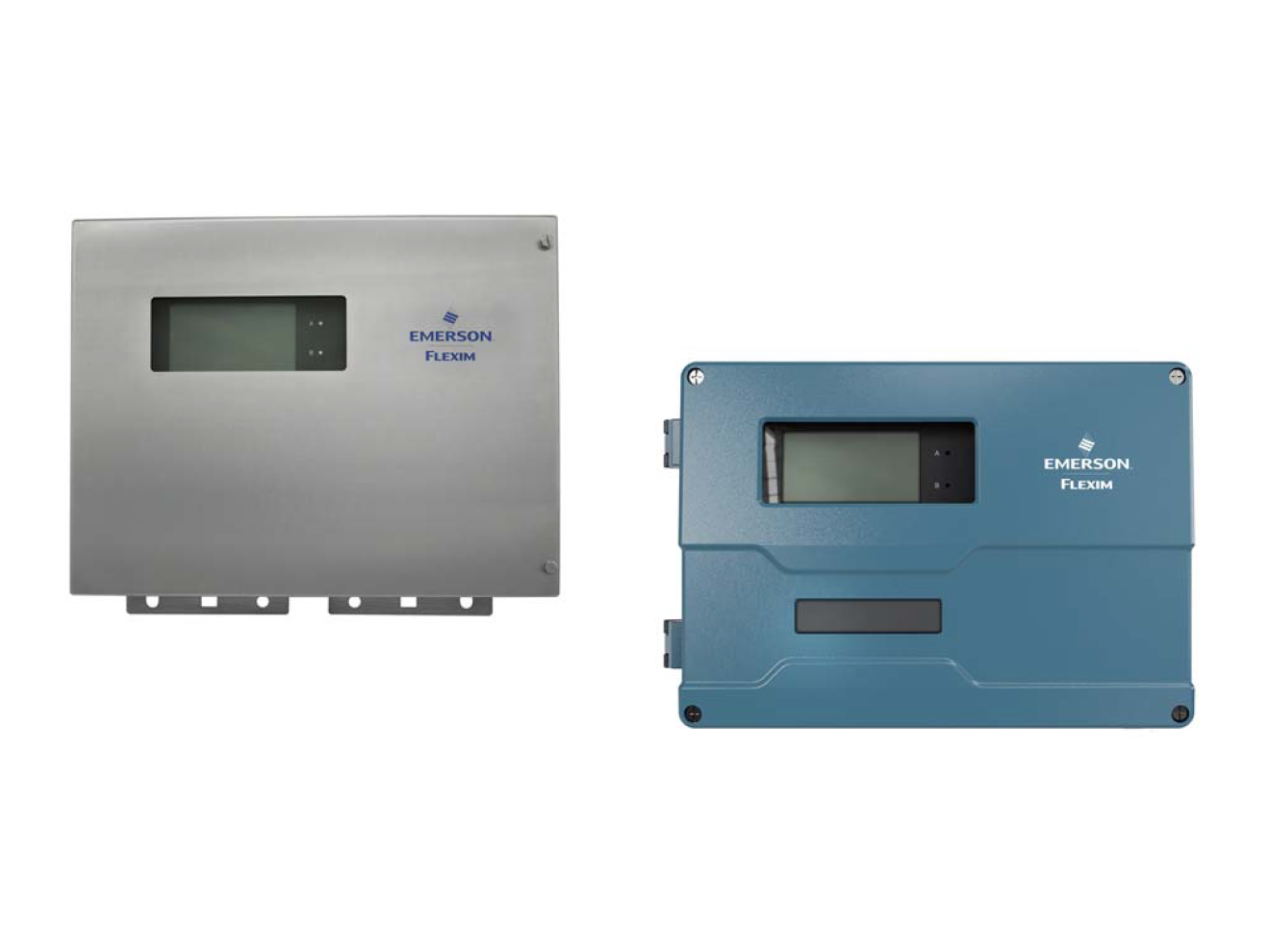

Flexim FLUXUS F731PW Ultrasonic Flow Meter

Stationary clamp-on flow meter with stainless steel housing for process, produced and cooling water applications. Single or dual channel variants available, 0.03 to 82ft/s flow rating.

Starting at $9,605.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4 weeks
Product Manual Product Specs (3 Files)

Features

  • Shear wave measurement of water
  • Pipe size(s): 0.98 to 157.5in (recommended sizes)
  • Flow rate: 0.03 to 82ft/s (0.01 to 25m/s)
  • Media temperature range: -40 to 266°F (-40 to 130°C)
  • Output: 4 to 20mA
  • HART protocol available
  • Variofix L fixture materials:
    • Stainless steel 316Ti (1.4571), 316L (1.4404), 17-7PH (1.4568)
  • Hermetically sealed electronics compartment
  • Drift-free design
  • Power supply: 20 to 32VDC or 100 to 240VAC
  • Stripped cable ends
  • IP66 protection rating
  • Hazardous area certification: FM Class I Div. 2
A completed Flexim Application Support Form is required to purchase this meter. We will contact you about your order.

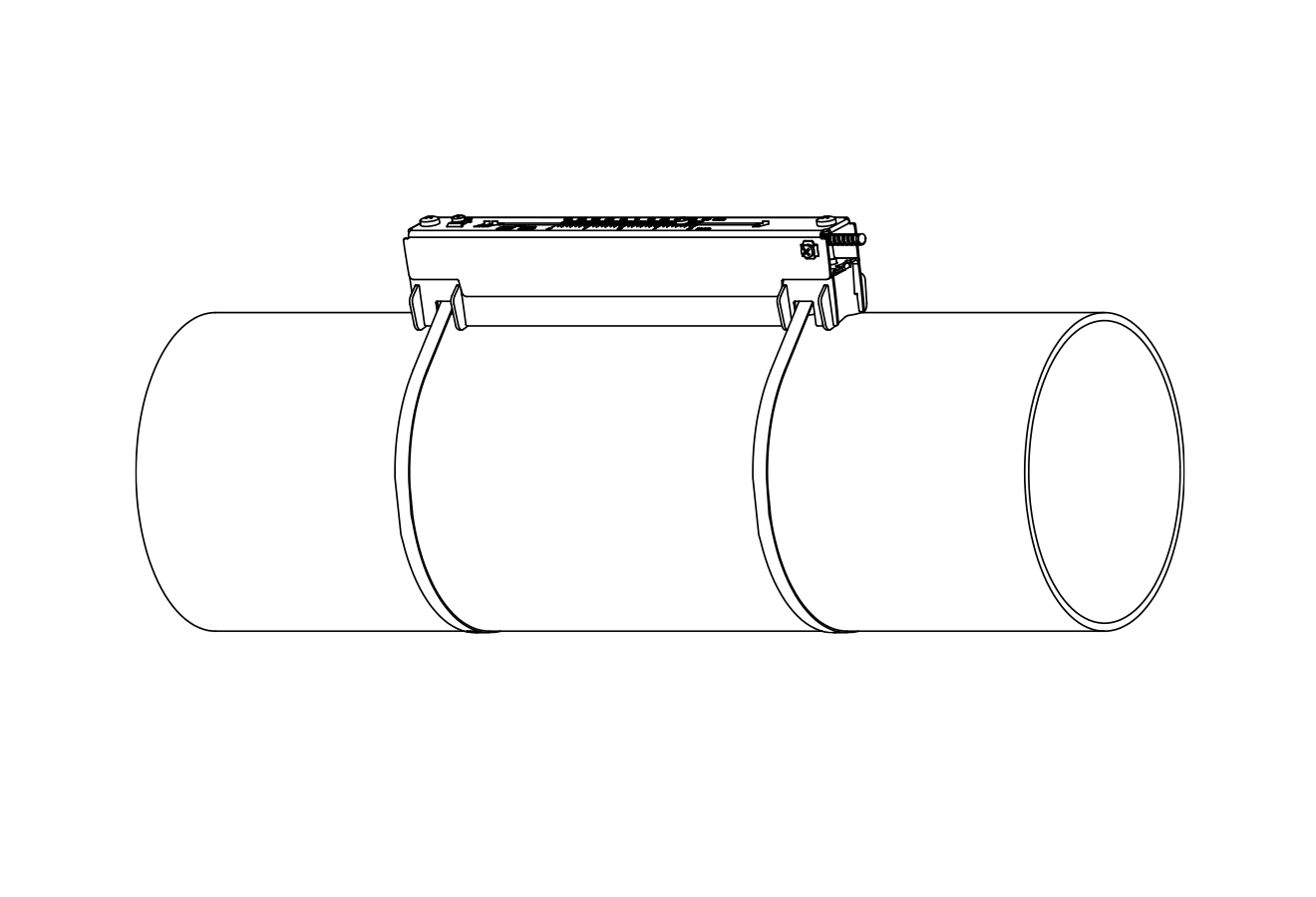

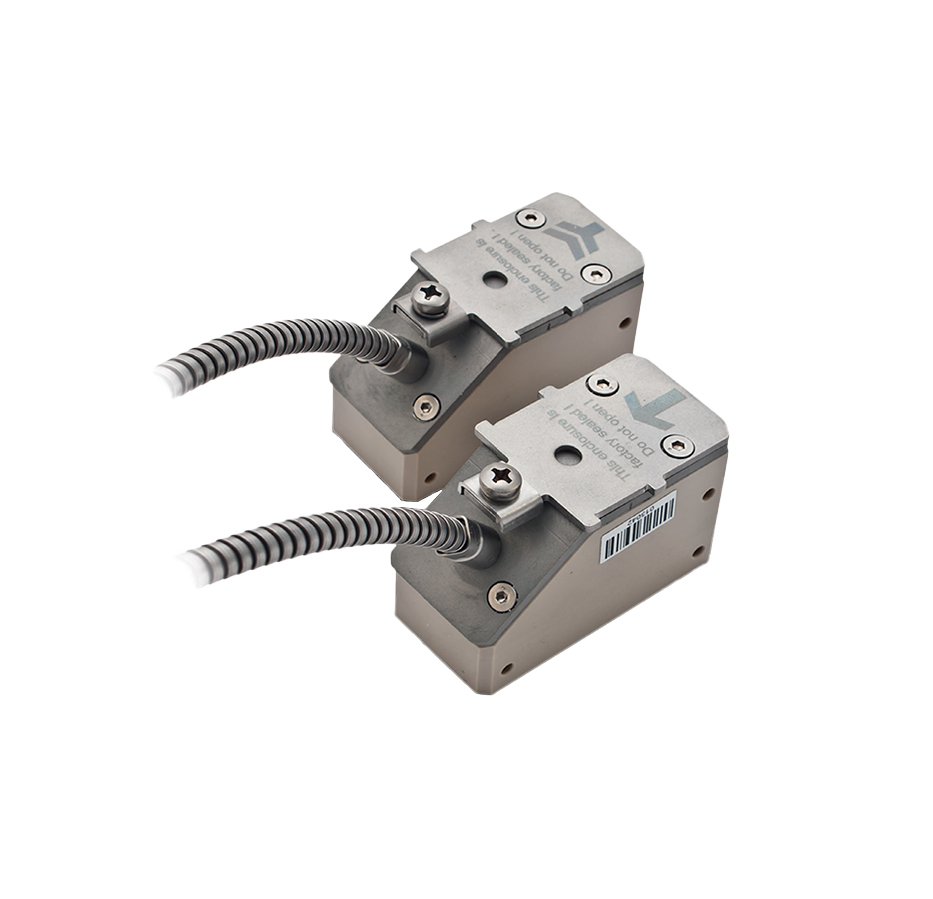

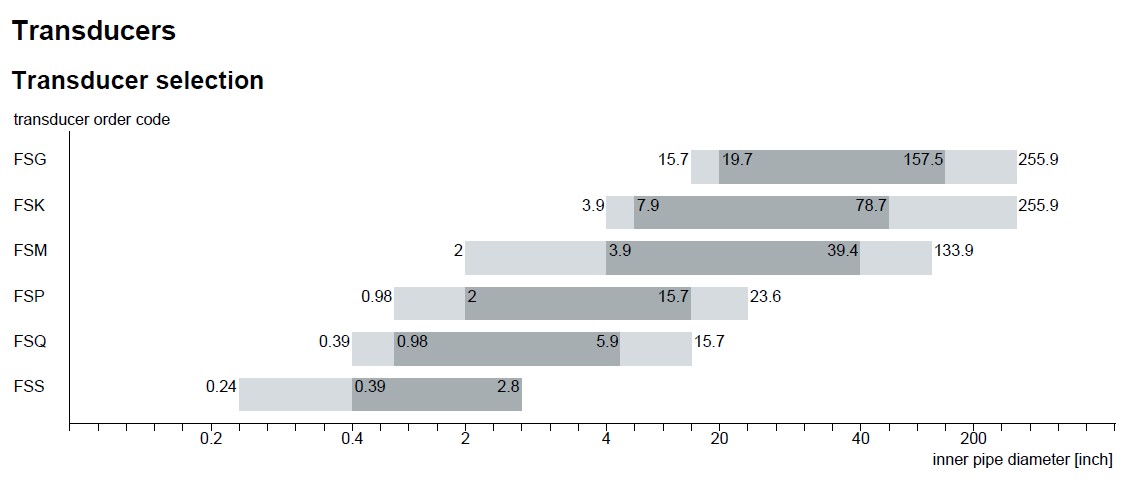

The Flexim FLUXUS F731PW Ultrasonic Flow Meter is a single or dual-channel solution for flow monitoring and leak detection in various water-based application processes. The F731PW Series features streamlined installation through the permanent clamp-on design. Reliable and accurate flow measurement is possible at rates as low as 0.03 ft/s, and up to 82ft/s. The transducers are fixed to the outside of the pipe for a drift-free design. The transducer is secured with broad stainless-steel straps and the robust Variofix L fixture. The FM Class I Div. 2 certification, and permanent coupling to existing piping ensures reliable measurements in the long term in hazardous environments. Units are available with DC or AC input power, 4 to 20mA outputs or HART communication, with compatible pipe sizes from .98 to 157.5in. Refer to the Flexim Clamp-On Ultrasonic Transducer Pipe Size Selection Guide in the Documents tab for specifications on extended pipe sizes possible.
