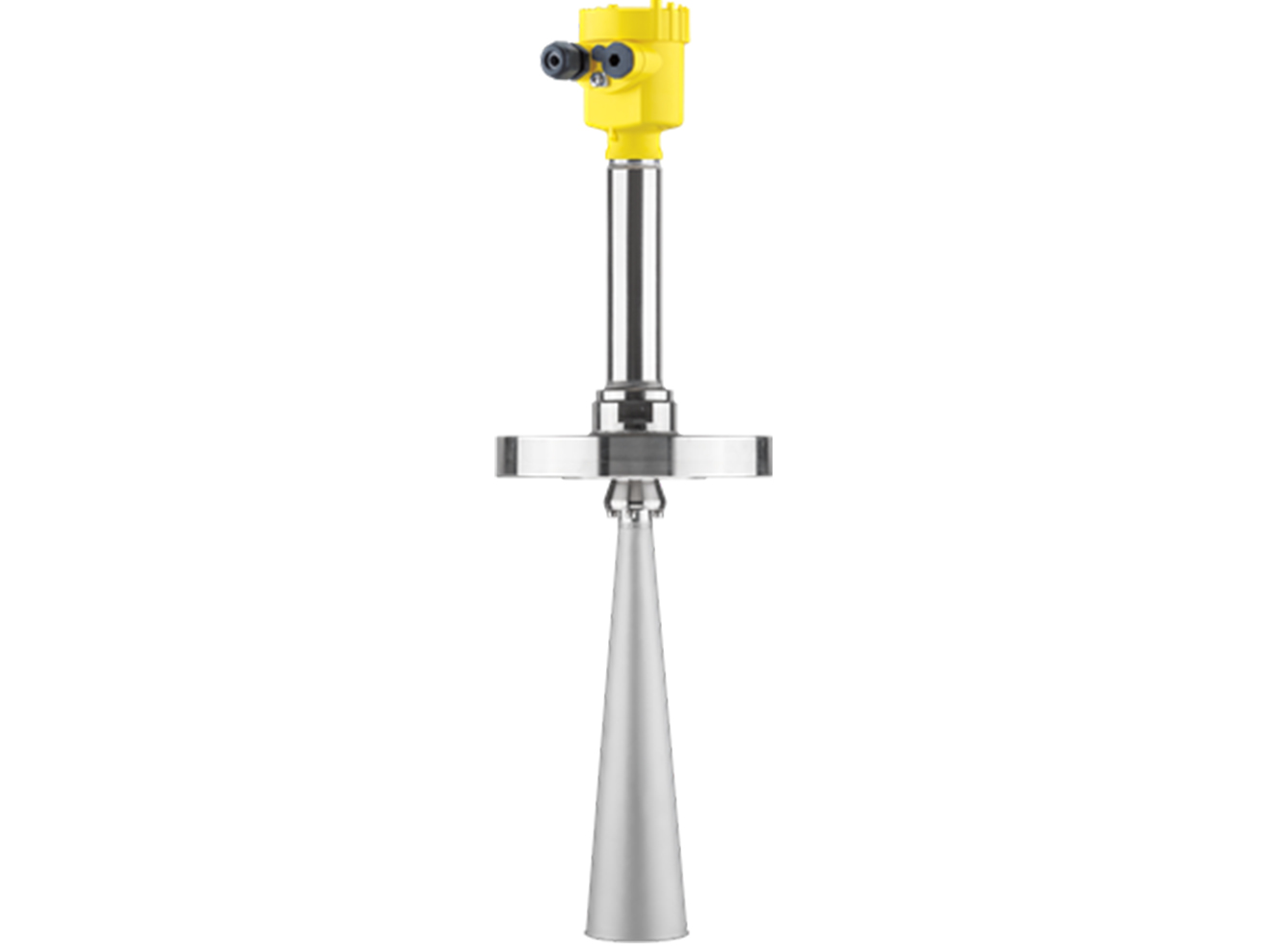

VEGA VEGAPULS 6X Radar Sensor

Non-contact radar level sensor for liquids and bulk solids with ≤1mm accuracy, up to 120m measuring range, and dependable performance in compact or complex installations.

Call 1-800-884-4967 for pricing

Please fill out this Radar Level Application Advisor form. An Instrumart engineer will be in touch to advise on the configuration your system requires.

Effective October 1st, 2025 VEGA has added a 9% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews
Part Number
  • PS6X
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Measuring range up to 120m
  • Deviation ≤ 1mm
  • Measuring frequency W-band (80 GHz technology)
  • Beam angle 3° (depending on antenna)
  • Non-contact radar measurement for liquids and bulk solids
  • Process temperature: -321° to 842°F
  • Process pressure -1 to 160bar (-100 to 16000kPa / -14.5 to 2320psig)
  • Output signal 4 to 20mA/HART, Profibus PA, Ethernet APL, Modbus
  • Bluetooth 5.0 for wireless setup and diagnostics

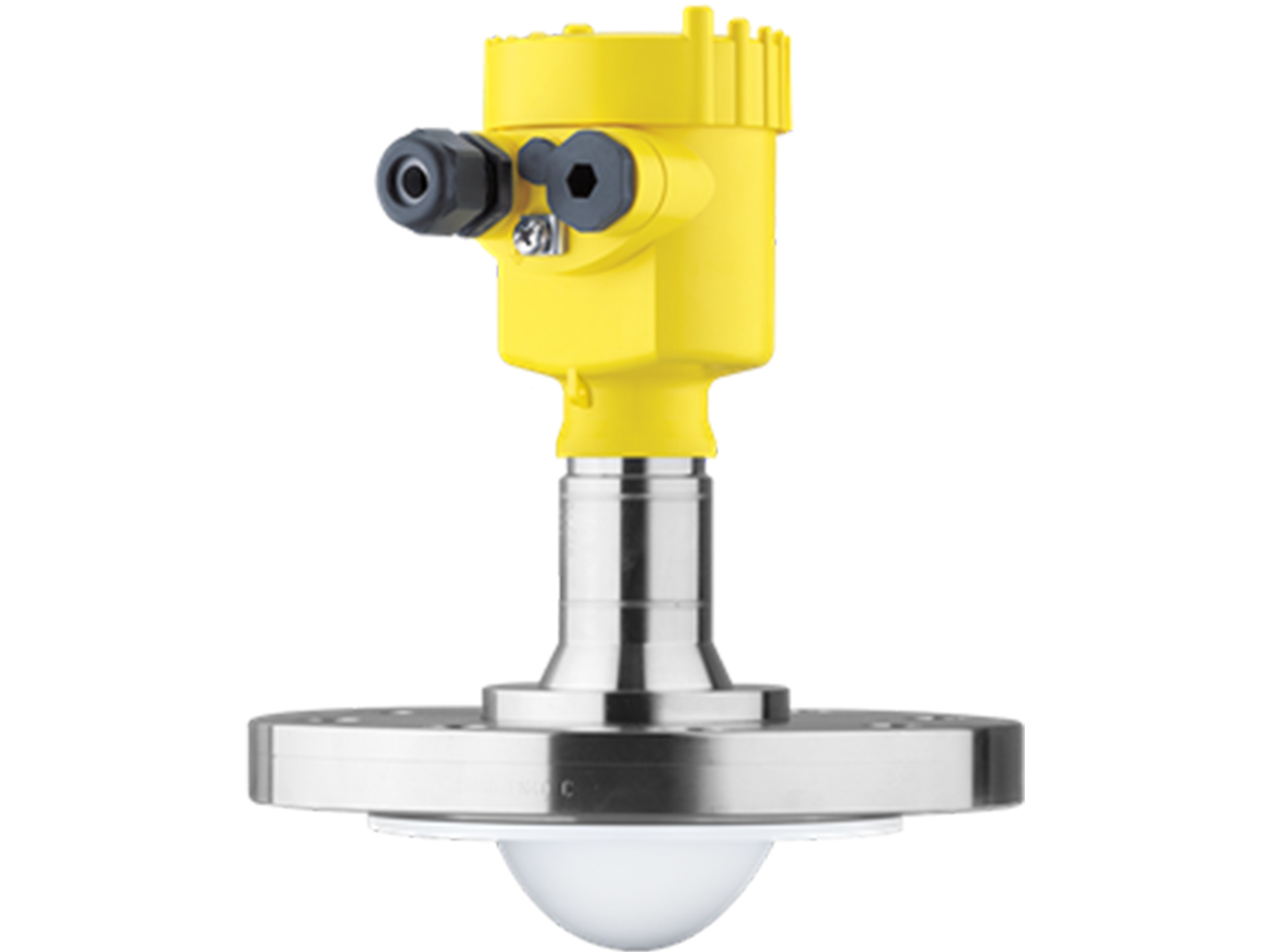

The VEGA VEGAPULS 6X Radar Sensor for continuous level measurement of liquids and bulk solids provides non-contact measurement suitable for a wide range of industrial applications. Small process fittings are suitable for liquids in small tanks or tight mounting spaces, and the focused radar signal allows measurement in vessels with internal installations such as stirrers or heating spirals. For bulk solids, the sensor is suitable for high silos, large bunkers, and segmented vessels. It is available with either an encapsulated plastic antenna or a lens antenna integrated into a metal flange. The measuring range is up to 120m with a deviation of ≤1mm.

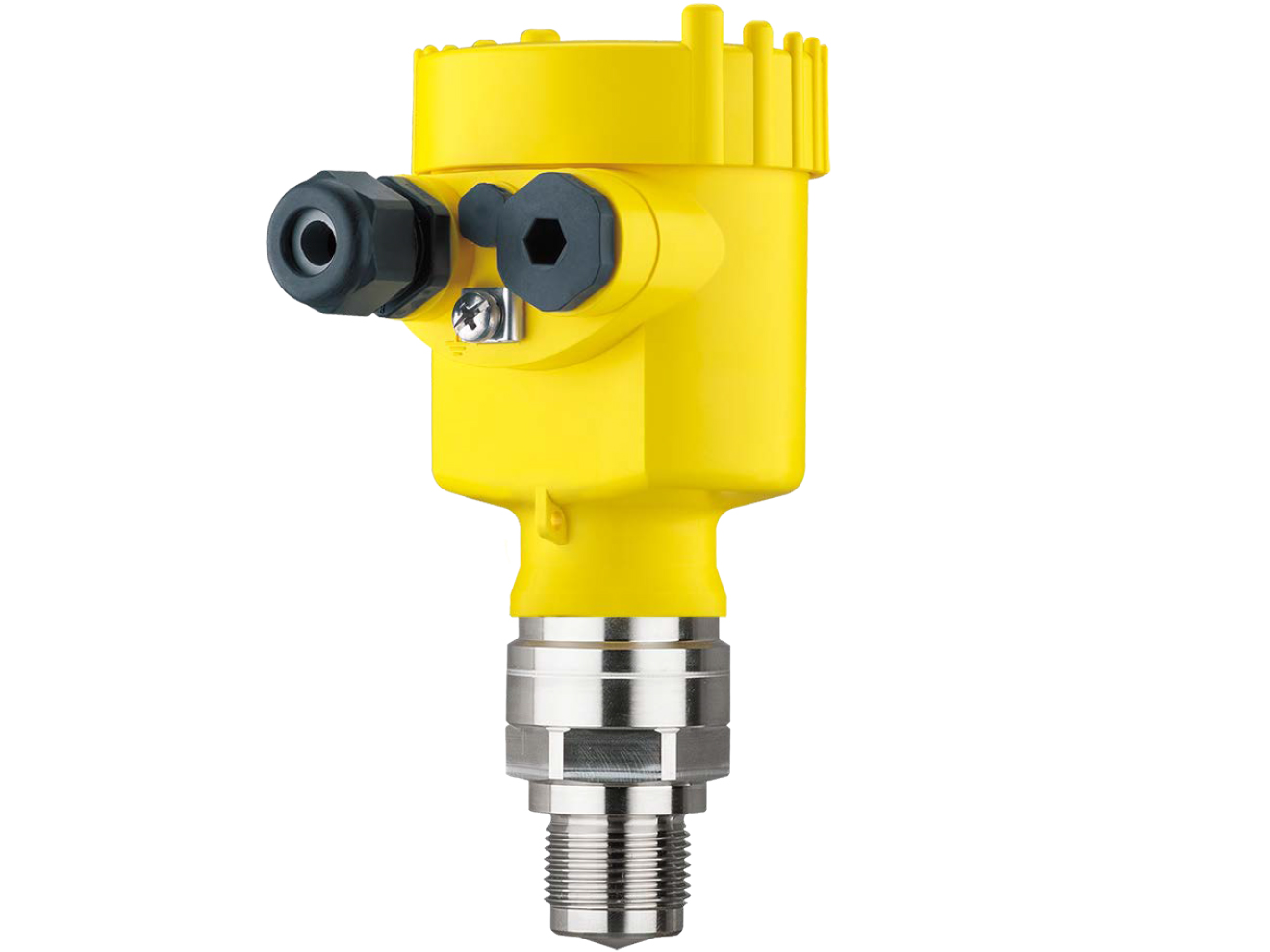

The VEGAPULS 6X operates at W-band 80 GHz, C-band 6 GHz, or K-band 26 GHz frequencies, with a beam angle of 3° depending on the antenna. Process fittings include mounting straps, compression flanges from DN 80 3in, threads from G 3/4 or 3/4 NPT, encapsulated antenna systems, flanges from DN 20 2in, and flanges with swiveling holders from DN 100 4in. It can withstand process pressures from -14.5 to 2320psi and process temperatures from -321° to 842°F. Ambient, storage, and transport temperatures range from -40° to 176°F. Output signals include 4 to 20mA/HART, Profibus PA, Ethernet APL, and Modbus. Bluetooth 5.0 allows wireless connection for setup and diagnostics.

VEGA VEGAPULS 6X Radar Sensor Applications:

  • Continuous level measurement of liquids in small tanks or confined spaces
  • Level measurement in high silos, large bunkers, and segmented vessels for bulk solids
  • Measurement in vessels with internal installations such as stirrers or heating spirals
  • Industrial applications requiring maintenance-free, wear-free operation
