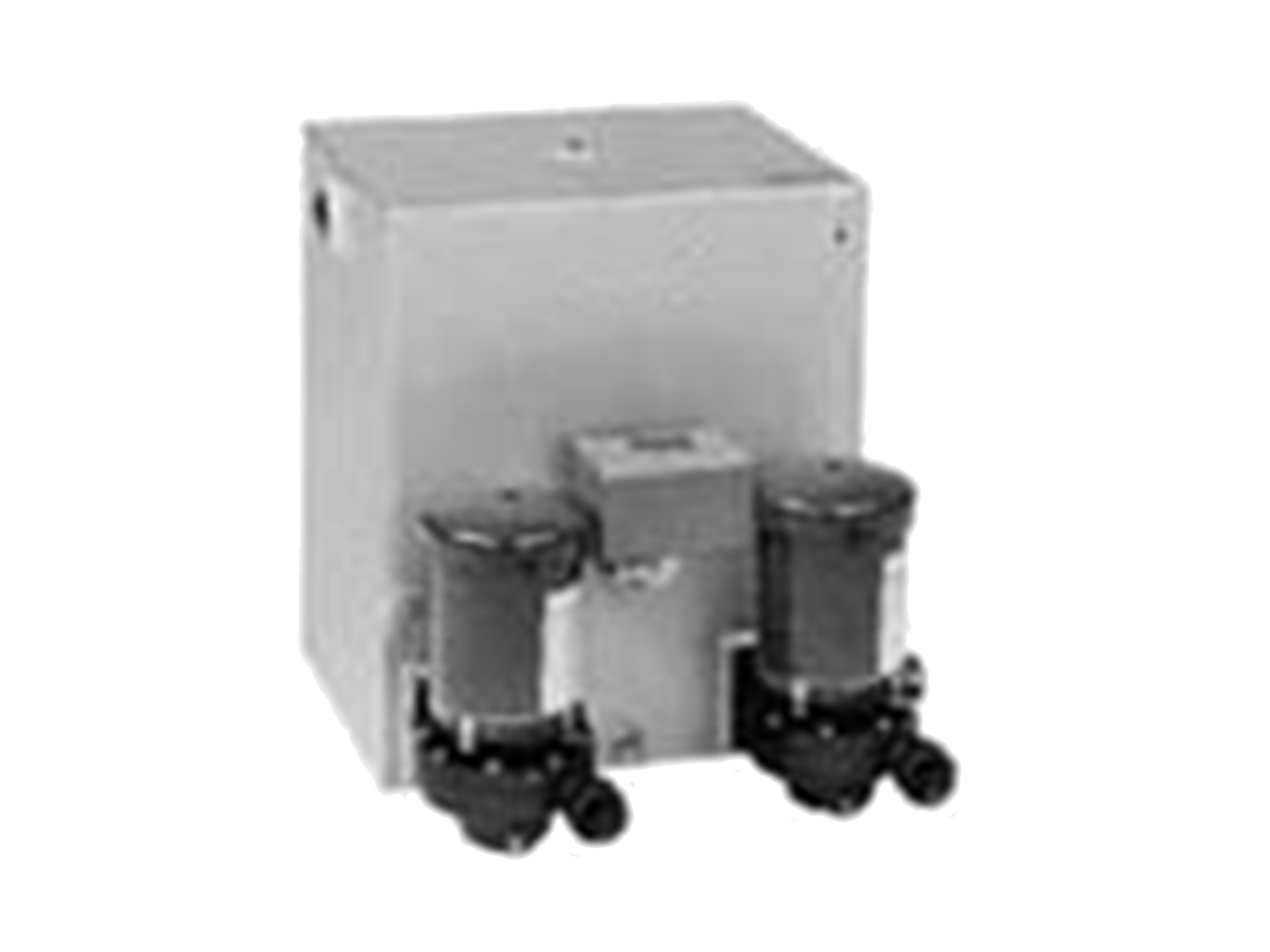

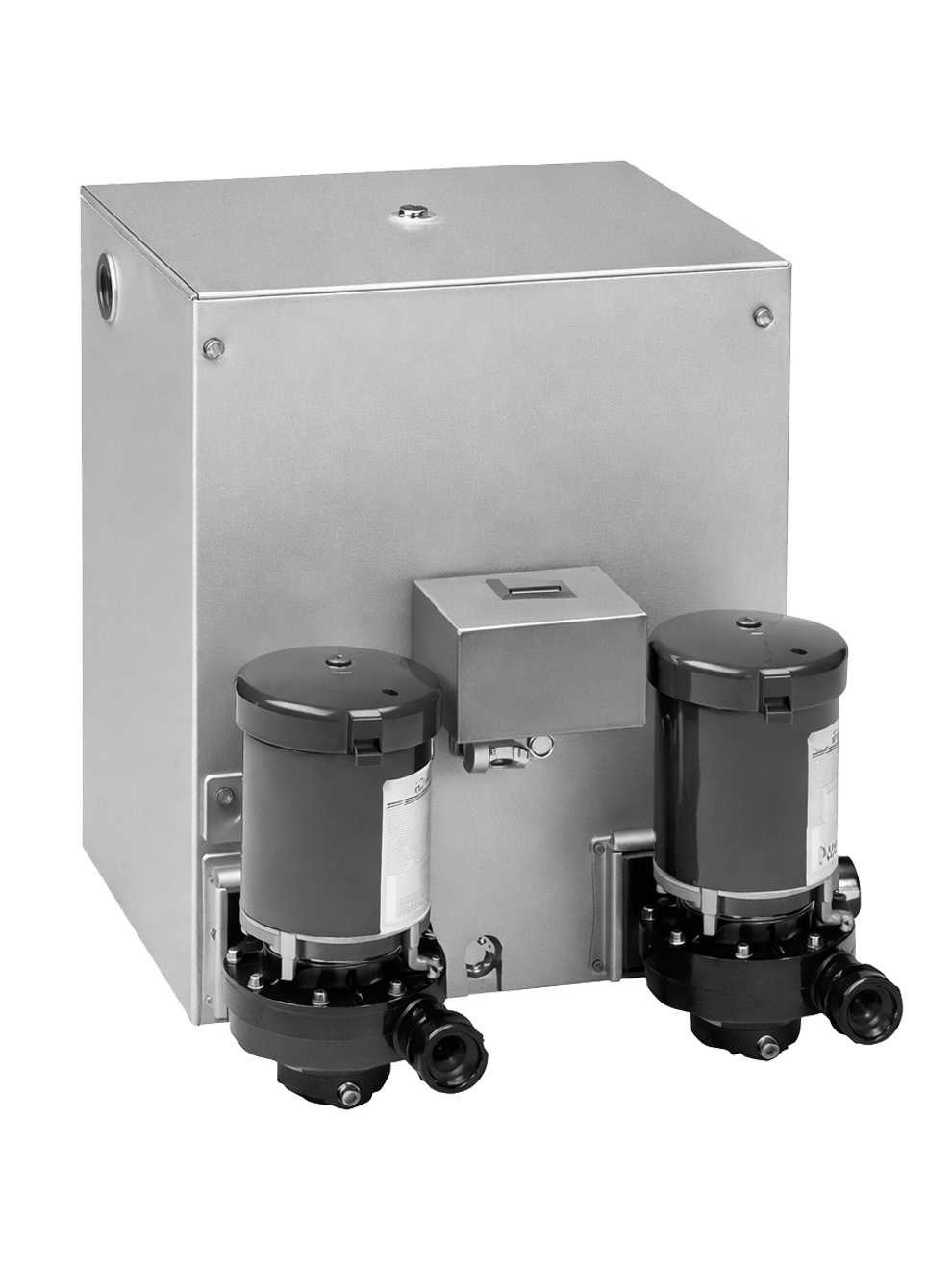

Armstrong International FHS Series Electric Condensate Pump
3/16in thick black steel receiver; simplex and duplex configuration options available.
Starting at
$1,984.00
Manufactured
Includes
Availability
Overview
Features
- 20psi discharge pressure
- 12 to 30gpm pump capacity
- 8 to 30gal receiver
- Motor type:
- 1/60/115-230V
- ODP
- 3500 RPM
- 1/3, 1/2, or 3/4 HP
- Included component:
- NEMA 1 float switch (simplex only)
- NEMA 1 mechanical alternator (duplex only)
- Floor-mounted, designed for 20,000sq ft EDR
- Mechanical seals rated for temperatures up to 250°F
Description
The Armstrong International FHS Series Electric Condensate Pump is designed for pumping water at temperatures up to 200°F. Standard black steel receivers are provided, and units are floor-mounted and designed for up to 20,000sq ft EDR and discharge pressures up to 20psig. The FHS is available in either simplex or duplex configurations with 3500 RPM, single-phase motors. Pumps are typically equipped with mechanical seals rated for temperatures up to 250°F.
