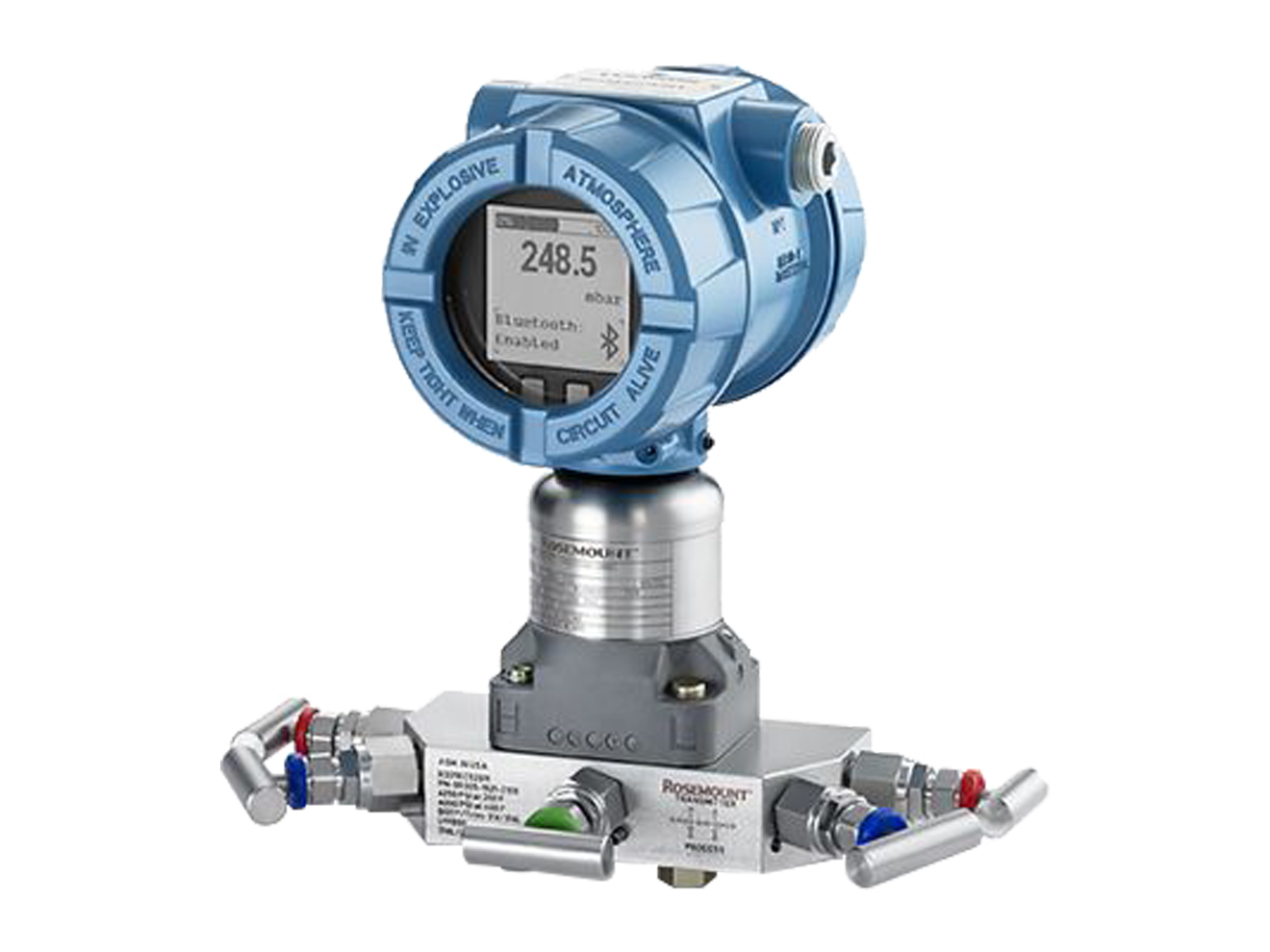

Rosemount 4051S Coplanar Scalable Pressure Transmitter

0.025% span accuracy; up to 800:1 rangedown.

Starting at $3,721.78
Effective April 15th, 2025 Rosemount has added a 6.7% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Measurement range:
    • Differential: Up to 2,000 PSI (137.89bar)
    • Gauge & Absolute: Up to 10,000 PSIG (689.47bar)
  • 4-20mA HART protocol with two integral relay switches
  • <50ms time constant/response
  • Diagnostics:
    • Process intelligence
    • Dedicated plugged impulse line & loop integrity
    • Expanded process alerts
  • Process wetted material:
    • 316L stainless steel
    • Alloy C-276
    • Alloy 400
    • Tantalum
    • Gold-plated 316L stainless steel
    • Gold-plated Alloy 400
  • Ultra, Ultra-for-Flow, and Classic performance
  • Remote display and interface
  • Safety certification option

The Rosemount 4051SC Coplanar Scalable Pressure Transmitter measures differential, gauge, and absolute pressure. The coplanar platform allows seamless integration with manifolds, primary elements, and seal solutions. Bluetooth connectivity provides for simplified configuration and maintenance, while increasing personnel safety by avoiding the need to enter hazardous locations. Two integral relay pressure switches provide enhanced asset protection and help prevent overpressure conditions.

The graphical, backlit display is large and available in seven languages. The all-welded hermetic stainless steel SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracy. Integral relay switches help eliminate failure, accuracy and reliability issues that are common with standalone switches, and allow simple on/off control capabilities for applications without a PLC or DCS.
