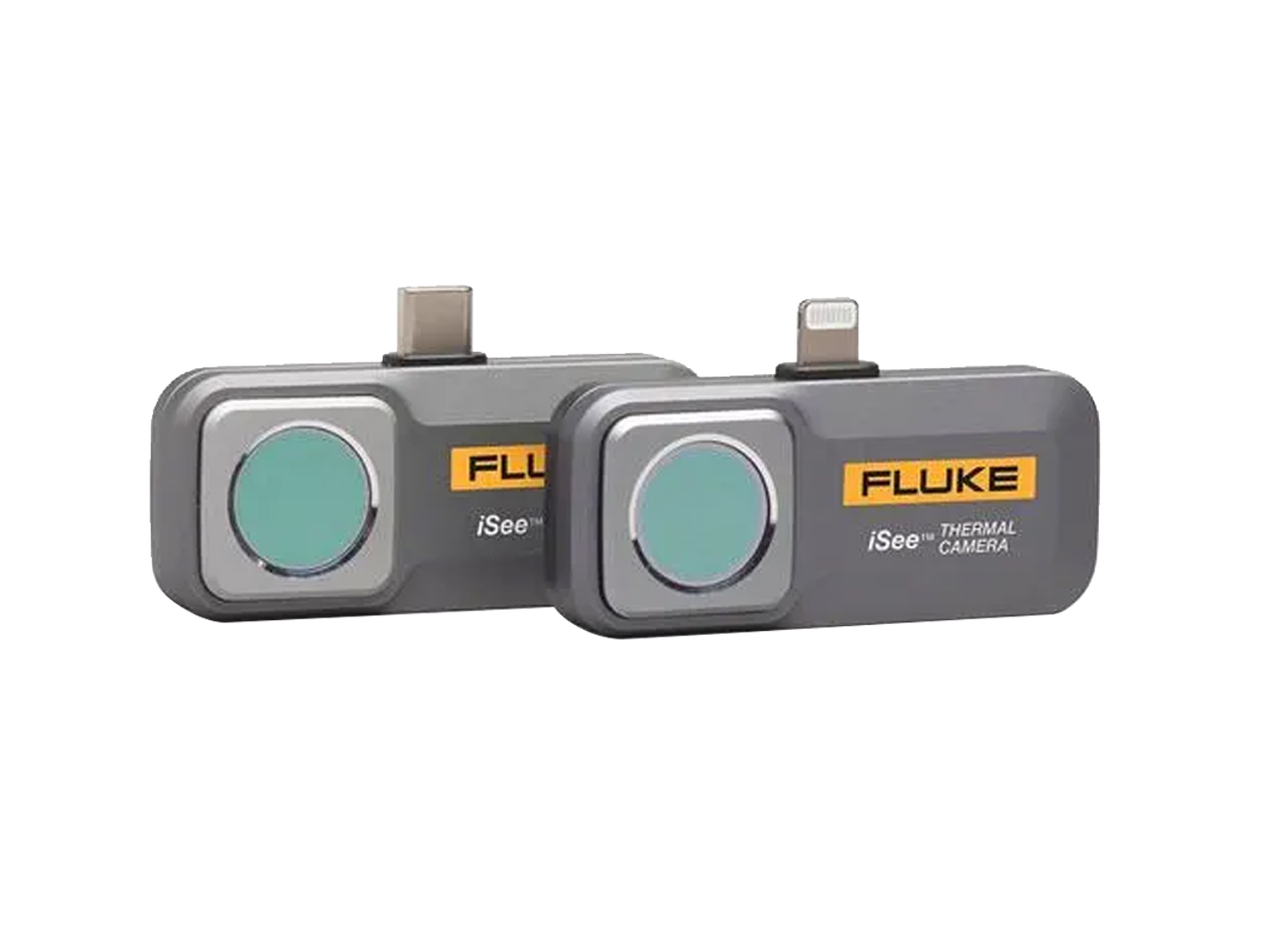

Fluke iSee Mobile Thermal Camera

256 x 192 IR resolution, 12μm pixel size.

Features

  • 14 to 1,022°F (-10 to 550°C) temperature range
  • ±2% or ±3.6°F (2°C) accuracy
  • 50mk (0.05°C) thermal sensitivity for fine screening
  • Type-C USB interface for iOS
  • 25Hz frame rate
  • 3.2mm focal length
  • Internal shutter mode
  • 8 to 14μm spectral range
  • 56° x 42° field of view
  • 3.81 mrad spatial resolution
  • 1 minute warmup time

The Fluke iSee Mobile Thermal Camera is inserted into the Type-C interface of an iOS smartphone to provide thermal imaging detection. The iSee is available with more than 10 standard and custom color palettes to achieve a variety of personalized images. The software offers comprehensive spot, line, and area temperature analysis for precise diagnostics.

Applications:

  • Electrical and mechanical inspections
  • Inspection service
  • HVAC inspection
  • Product R&D and quality control
