Leyro LHC 40 Temperature Calibrator

Name: Leyro LHC 40 Temperature Calibrator
Price: 5271.72 USD
Availability: BackOrder

A versatile and reliable temperature calibrator offering a -31 to 329°F range, 165mm immersion depth, and stability from ±0.018°F on the Basic model to ±0.014°F on the Advance model.

Starting at $5,271.72

Effective October 16, 2025 Leyro has added a 15% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By Leyro Instruments

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 4-6 weeks

Product Specs (2 Files)

Features

Models:
- LHC 40 Basic
- LHC 40 Advance
Temperature range: -31 to 329°F
Immersion depth: 165mm
Accuracy: ±.18°F
Stability:
- Basic models: ±.018°F
- Advance models: ±.014 °F
Uniformity:
- Basic models: ±.09 °F
- Advance models: ±.054 °F
Resolution:
- Basic models: .18°F
- Advance models (selectable): .18°F / .018°F / .0018°F
Power supply: 100/234VAC, 50 to 60Hz
Power consumption: Approximately 310 W
Warm-Up time: From 23 to 212°F in 15 Minutes
Cooling time: From 77 to -13°F in 20 Minutes
RS485 Modbus RTU (DB9 connector)
3-year warranty

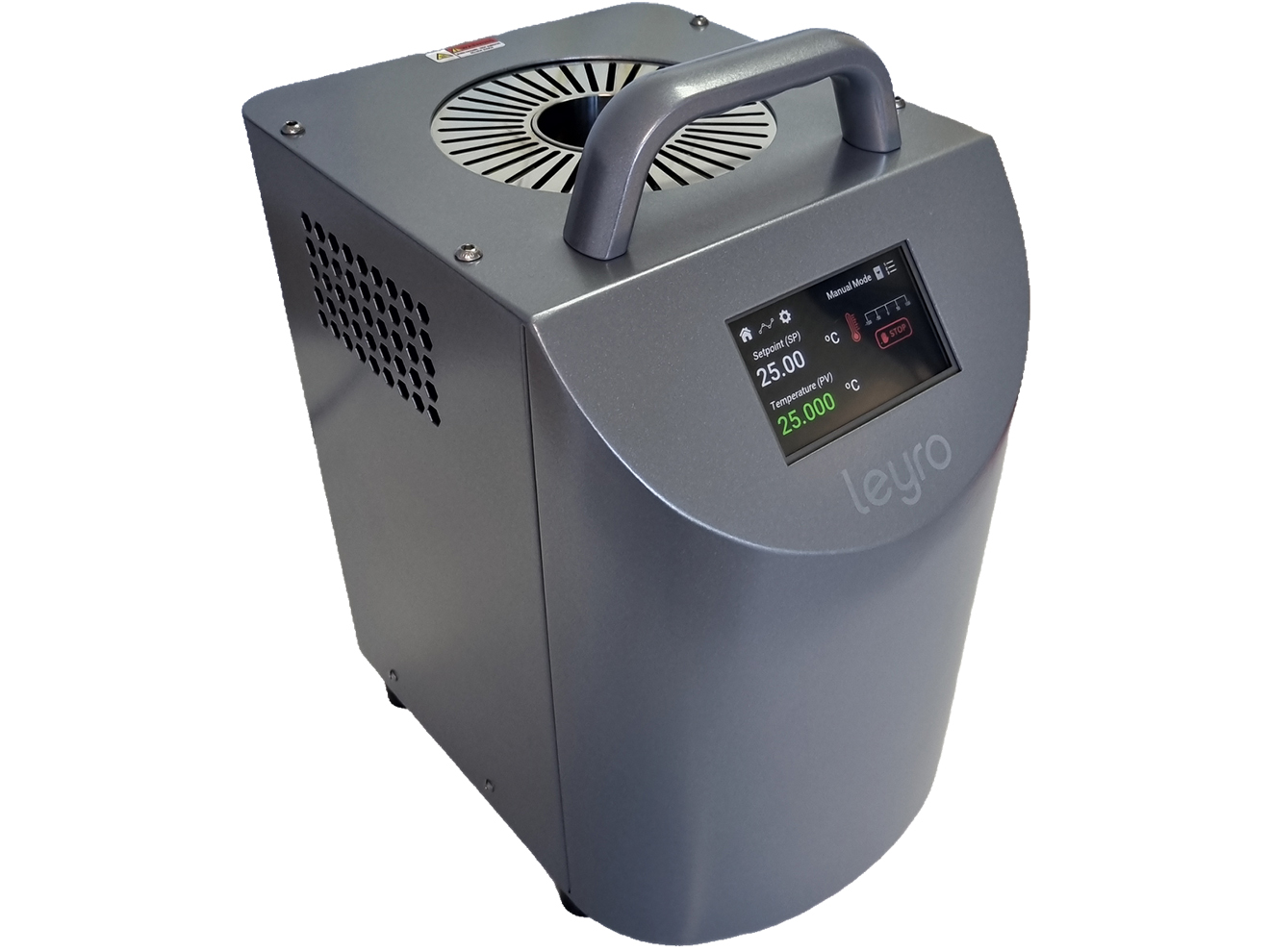

The Leyro LHC 40 temperature dry block calibrator is designed for both basic and advanced temperature calibration tasks, operating over a temperature range from -31 to 329°F. The Basic model offers a resolution of 0.18°F and stability of ±0.18°F, while the Advance model features selectable resolutions (0.18°F / 0.018°F / 0.0018°F) with a stability of ±0.014°F. Both models include a calibration volume with a 60mm diameter and an immersion depth of 165mm.

The Basic model warms up from 23°F to 212°F in approximately 25 minutes and cools down from 77°F to -13°F in about 45 minutes. The Advance model heats from 23°F to 212°F, in just 15 minutes, and cools from 77°F to -13°F in approximately 20 minutes. Equipped with an intuitive touchscreen interface, RS485 Modbus RTU communication, and multi-language support, the LHC 40 series allows easy switching between dry block, blackbody, surface, and infrared calibration modes using interchangeable inserts. The LHC 40 comes standard with a calibration insert, insert extractor, power cable, and a 10-point traceable calibration certificate, all backed by a 3-year factory warranty. Optional ENAC ISO 17025 calibration certificates and a variety of insert configurations are also available.
