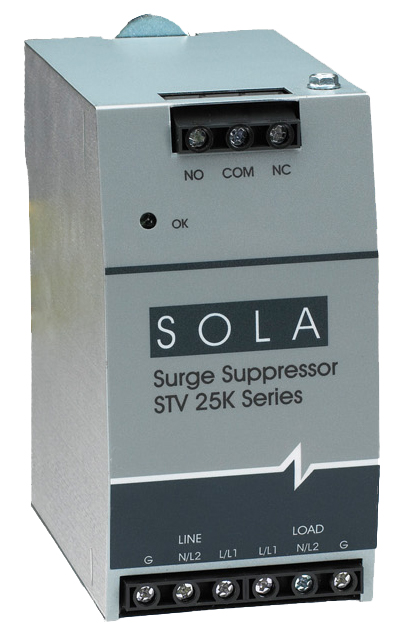

SolaHD STV25K DIN Rail Series Surge Protector

Compact and narrow design to maximize panel space.

Starting at $333.63

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-4 weeks
Product Manual Product Specs

Features

  • Low clamping levels for more effective protection
  • Easy access terminal screws for quick mounting and installation
  • 25,000 Amps of surge protection
  • Sine wave tracking and all mode protection provide consistent and reliable protection on all electrical paths
  • Thermal fusing prevents MOV overheating caused by excessive current levels
  • cRUus UL recognized component
    • UL 1449, type 2CA
    • UL 1283
  • ABS type approval

The SolaHD STV25K DIN Rail Series Surge Protector provides point-of-use protection, at the dedicated equipment level, against damaging transients. The STV25K is ideally installed in electronic control cabinets found in harsh industrial environments, such as the factory floor or at remote locations. The STV25K provides 25,000 Amps of surge protection per phase, sine wave tracking, LED status indication and form C dry contacts.

Applications (20 Amp max.)

  • Control cabinets for industrial automation
  • Point-of-use industrial/service equipment
  • Remote commercial or industrial equipment
  • Instrumentation and large test equipment
  • Commercial and building automation systems
