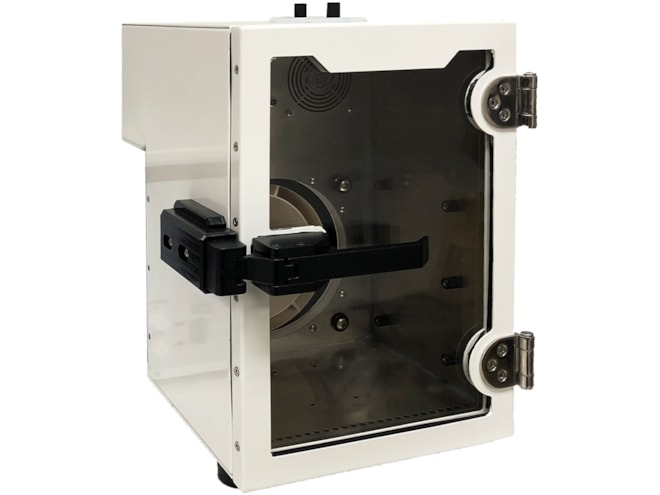

GEO Calibration 2000 SP Standard Expansion Chamber

8L carbon fiber expansion chamber with ±5°C ambient temperature and 20 to 80% RH range for the 2000 SP humidity generator.

$4,000.00

View Company Reviews
Part Number
  • 01-054-00-0000
Manufactured
Includes
Availability
  • Usually ships in 2-4 weeks
Product Manual Product Specs

Features

  • ±5°C ambient temperature
  • 20 to 80% RH humidity range
  • ±0.50°C temperature accuracy
  • ±3.00% RH accuracy at 23°C
  • 8-liter effective working volume
  • 0.50°C temperature uniformity
  • 3.00% RH uniformity at 23°C
  • 0.30°C temperature stability
  • 1.00% RH stability at 23°C
  • Ramp/soak rate of change:
    • Temperature high to low, 1.50°C per minute
    • Temperature low to high, 5.00°C per minute
    • Humidity high to low, 1.00% RH per minute
    • Humidity low to high, 1.00% RH per minute

GEO Calibration 2000 SP Standard Expansion Chamber generates and maintains a controlled humidity and temperature environment for testing or calibrating humidity and temperature sensors, also known as hygrometers. The humidity calibration range is 20 to 80%, while the temperature range is +/-5°C from room temperature. The expansion chamber can calibrate many hygrometer types, including probes, data loggers, chart recorders, and other assorted hygrometers.
