MadgeTech ThermoVaultX Oven Temperature Data Logger
A thermal insulated, multi-channel oven temperature recorder with a standard calibration certificate.
Overview
Features
- Reading rate: 4Hz up to 1 reading every 24 hours
- Withstand temperatures up to 662ºF for up to 25 minutes
- NIST certificate
- Baud rate: 460,800 baud
- Memory:
- 4-channel: 524,032 readings per channel
- 8-channel: 262,016 readings per channel
- Internal channel temperature calibrated accuracy: ±0.5°C (0°C to 50°C)
- 18 month battery life
Thermocouples are NOT included with the ThermoVaultX Temperature Data Logger. Please contact us to speak with an application engineer to specify the sensor type.
What's in the Box
- ThermoVaultX temperature logger
- Micro USB Cable
- NIST certificate of calibration
- AC Power Adapter
- Includes 72in K-type thermocouples
Description

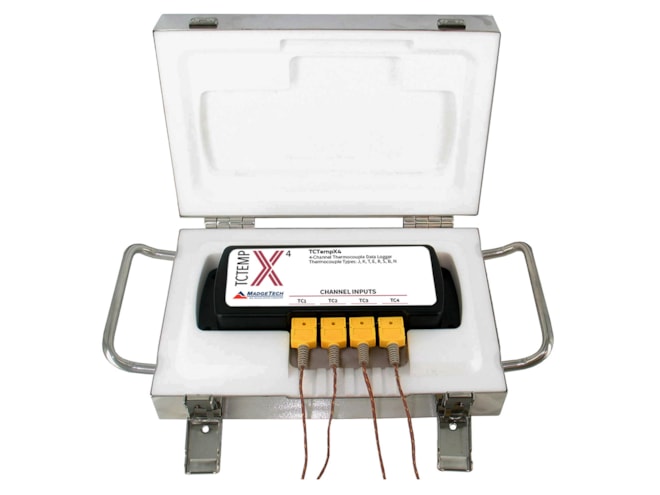

The ThermoVaultX series is a thermal insulated, oven temperature recorder available with four or eight thermocouple channels.
Capable of withstanding extreme temperatures up to 662ºF for up to 25 minutes when properly sealed, the external thermocouple probes provide accurate temperature measurements with fast response times. Its stainless steel enclosure and thermal properties lend itself to be the ideal temperature recording device for applications such as powder coating cure ovens, wet coating cure ovens, batch ovens and conveyor ovens.
The ThermoVaultX series is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
