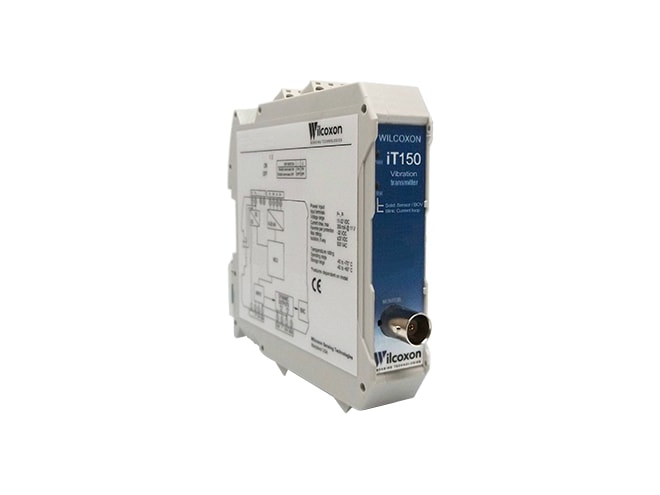

Wilcoxon Sensing Technologies iT150 Vibration Transmitter

Intelligent vibration transmitter that outputs sensor inputs as a 4-20mA signal, DIN rail mountable with front panel BNC for dynamic signal output.

Starting at $884.62

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 5-7 business days
Product Manual Product Specs

Features

  • Sensor sensitivity:
    • Accelerometer: 10, 100, 500mV/g
    • Piezovelocity: 10, 100, 500mV/ips
    • Dual output: 10 mV/°C
  • Frequency response:
    • Acceleration: 0.2Hz to 20kHz (-3dB, -01.dB)
    • Velocity: 0.2Hz to 5kHz
  • 20 volts peak-to-peak maximum dynamic signal input
  • 500Ω maximum 4-20mA loop load resistance
  • ±0.2% of full scale accuracy

The Wilcoxon Sensing Technologies iT150 vibration transmitter accepts input from an IEPE accelerometer, piezovelocity sensor or dual output (vibration and temperature) sensor, and outputs the overall vibration level as a 4-20 mA signal. Output mode options include 4-20mA proportional to acceleration, velocity, and displacement. Dual-output sensors are accommodated with a secondary 4-20mA output reflecting the temperature signal. Factory configured full-scale range and frequency bandwidth are user-selected.

The iT150 features DIN rail mounting and a front panel BNC for dynamic signal output. It is manufactured in an ISO 9001 facility.
