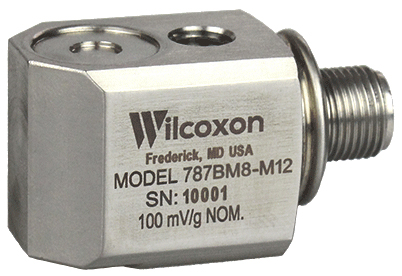

Wilcoxon Sensing Technologies 787B Series Accelerometer

Industrial accelerometer sensor, general purpose, 100 mV/g sensitivity, ±10% sensitivity tolerance, low profile with side exit.

Starting at $500.23

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 5-7 business days
Product Specs

Features

  • Dynamic vibration (IEPE) sensor output
  • 80g peak acceleration range
  • Frequency response:
    • ±10%: 1 to 5,000Hz
    • ±3 dB: 0.5 to 10,000Hz
  • 22kHz resonance frequency
  • 100Ω max output impedance
  • 500g peak vibration limit
  • 5,000g peak shock limit
  • Connector:
    • 787B: MIL-C-5015 2-pin, R6 type mating connector, 1/4-28 captive screw
    • 787BM8-M12: M12 style output and mating connectors, M8 captive screw
  • Hermetic sealing
  • PZT ceramic / shear sensing element

The Wilcoxon Sensing Technologies 787B series accelerometer is a low-profile, general purpose industrial sensor. It is constructed with 316L stainless steel, and is case isolated, internally shielded, and hermetically sealed. The 787B model features a 2-pin, MIL-C-5015 style output connector, an R6 type mating connector, and a 1/4-28 captive hex head screw (included) with a 0.046in diameter safety wire hole. The 787BM8-M12 model features a 4-pin, M12 style output connector and M8 thread captive screw (included) for mounting.

The 787B series also features ESD and reverse wiring protection and is manufactured in an ISO 9001 facility.
