Wilcoxon Sensing Technologies 732 Series High Frequency Accelerometer

Compact high frequency accelerometer, 10 mV/g sensitivity, wide frequency range up to 25kHz, side or top exit microdot connector, case grounded.

Wilcoxon Sensing Technologies 732A High Frequency Accelerometer

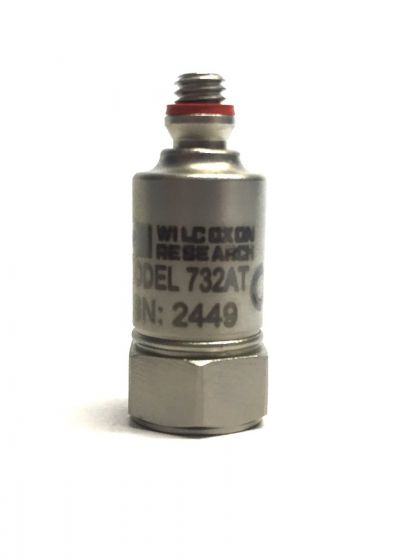

Wilcoxon Sensing Technologies 732AT High Frequency Accelerometer

Starting at $553.85

Effective April 21st, 2025, Wilcoxon Sensing Technologies has added a 7% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By Wilcoxon Sensing Technologies

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 5-7 business days

Product Specs

Features

Dynamic vibration (IEPE) sensor output
10mV/g sensitivity
±5% sensitivity tolerance
500g peak acceleration range
Frequency response:
- ±5%: 2 to 15,000Hz
- ±3 dB: 0.5 to 25,000Hz
60Hz resonance frequency
100Ω max output impedance
500g peak vibration limit
5,000g peak shock limit

The Wilcoxon Sensing Technologies 732 series high frequency accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel and features a 10-32 UNF tapped hole for mounting with SF1 stud (included), a 10-32 coaxial output connector, and an R1 mating connector. The 732A model has a side exit connector, and the 732AT model has a top exit connector. The 732 is case grounded and manufactured in an ISO 9001 facility.

High frequency accelerometers are used on machinery with gear mesh or small bearings, such as high-speed machine tool spindles and compressors. At high frequencies, there is little vibration in terms of displacement and velocity, however tremendous amounts of acceleration amplitudes may be present.
