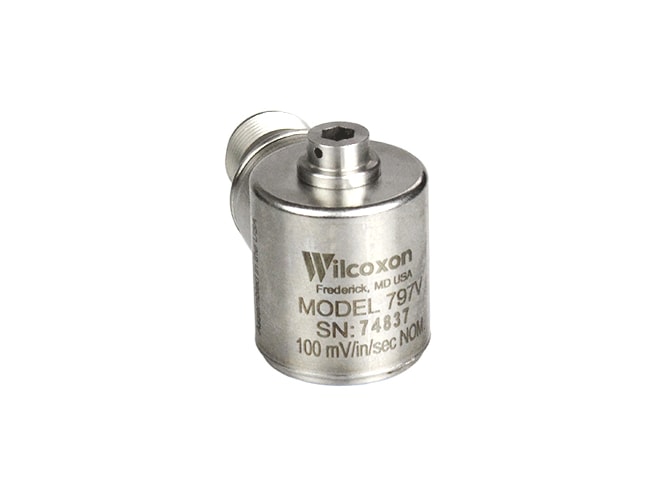

Wilcoxon Sensing Technologies 797V High Performance Velocity Sensor

High-performance, general purpose piezovelocity transducer with 100 mV/in/sec sensitivity and ±10% sensitivity tolerance.

Features

  • Dynamic vibration (IEPE) sensor output
  • ESD protection
  • 50 in/sec peak velocity range
  • 1% amplitude nonlinearity
  • Frequency response:
    • ±10%: 2 to 3,500Hz
    • ±3 dB: 1.6 to 7,000Hz
  • 18kHz resonance frequency
  • Greater of 5,000/f or 200Ω output impedance
  • 250g peak vibration limit
  • 2,500g peak shock limit
  • Hermetic sealing
  • PZT ceramic / shear sensing element
  • MIL-C-5015 2-pin output connector
  • R6 type mating connector

The Wilcoxon Sensing Technologies 797V high performance velocity sensor is designed for long-term, reliable use. It is constructed with 316L stainless steel, and is hermetically sealed. It features a 1/4-28 captive socket head with 0.062" diameter safety wire hole for mounting, and has a MIL-C-5015 2-pin output connector and a R6 type mating connector. The 797V is case isolated, and has 100 mV/in/sec sensitivity and ±10% sensitivity tolerance.

The 797V accelerometer is manufactured in an ISO 9001 facility.
